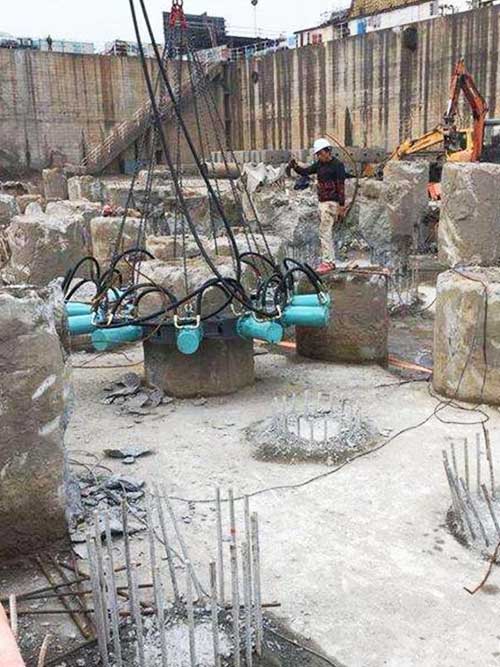

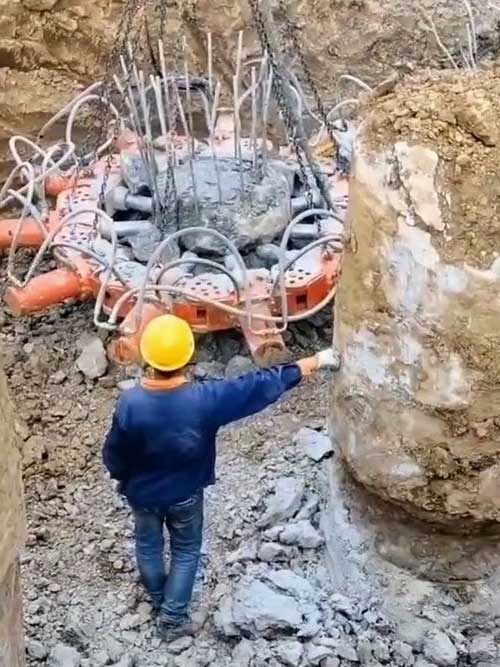

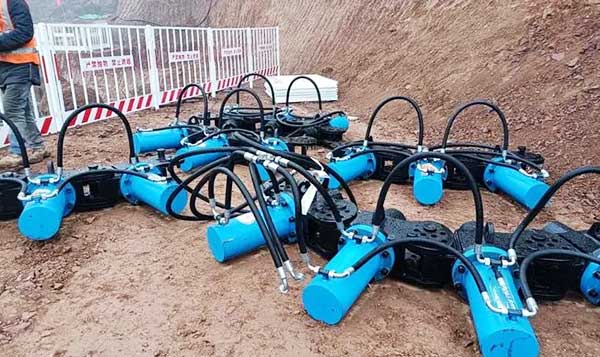

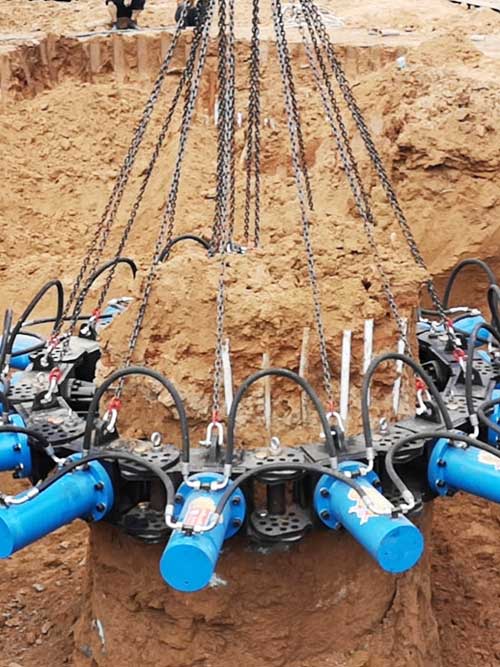

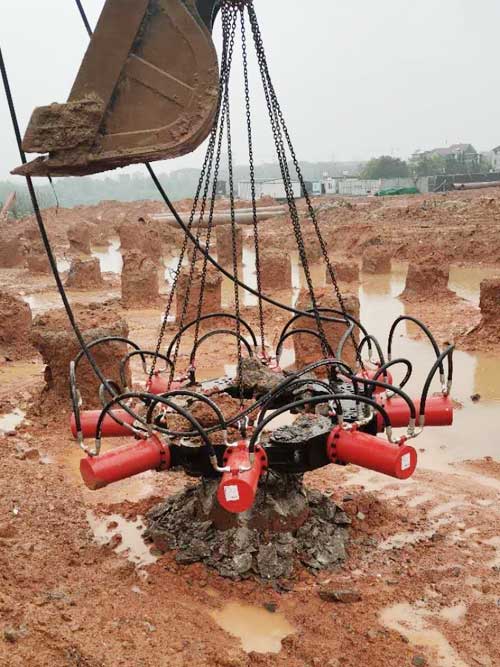

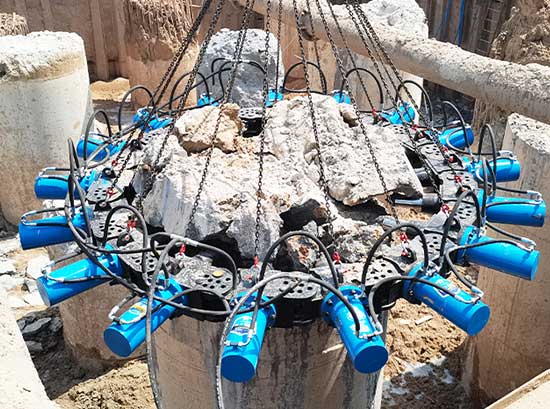

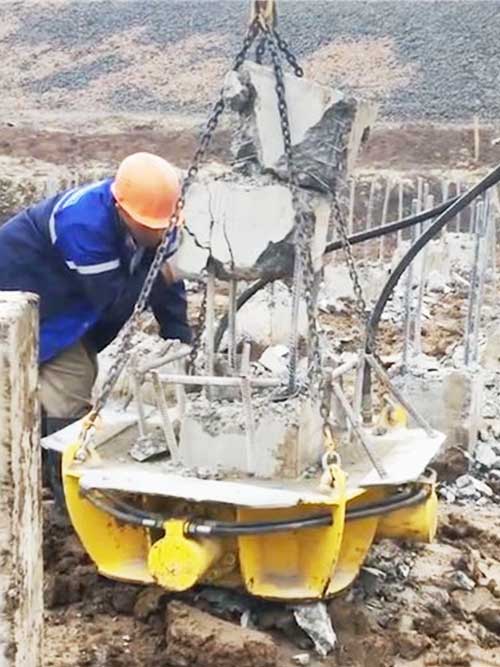

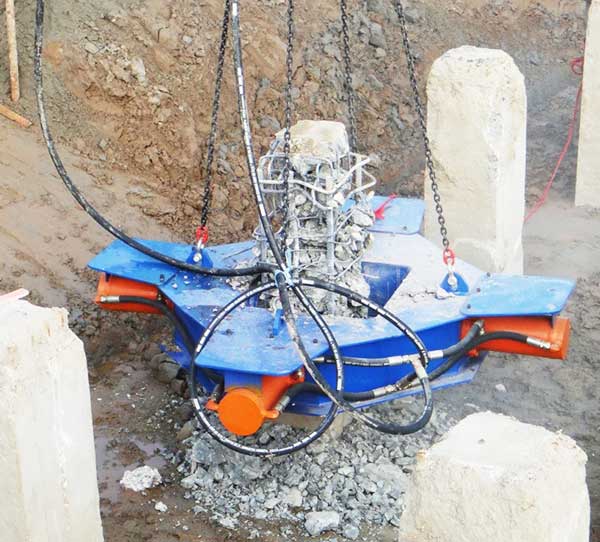

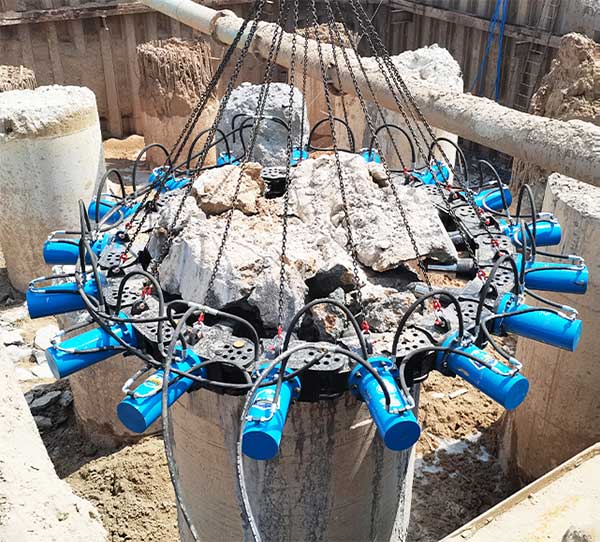

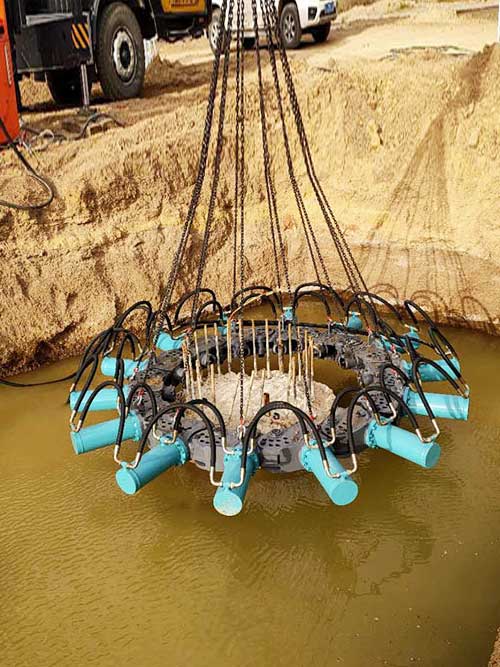

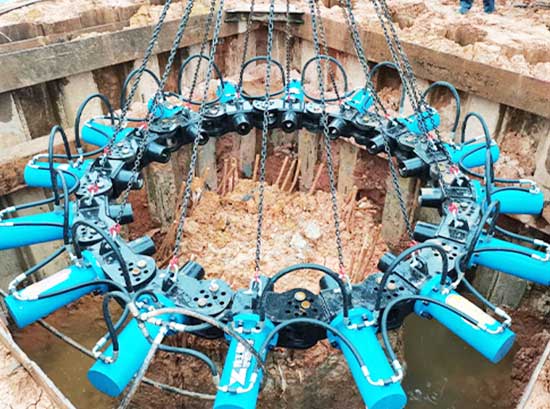

Hydraulic pile breaker: such as cast-in-place pile, prefabricated pile, etc.; from the shape of pile head, it can be divided into round pile breaker and square pile breaker. The pile breaker is widely used in high-speed rail bridges and pile foundation engineering of civil construction. Generally, the round pile cutter is suitable for pile diameters of 250mm-2500mm; the square pile cutter is suitable for pile sides 250-650mm, which can meet all kinds of Requirements for large-scale foundation construction.
l Simply operated with less staff ,reducing the construction cost
l Crushing the piles wholly ,reducing the consumption of energy
l Using adjustable chain, the pile breaker /cutter can be applied to construction in different terrains
l Full hydraulic drive ,low noise operation
l Quick assembled , more convenient to transport and more efficiently
l The design of long service life can bring customers optional benefits.

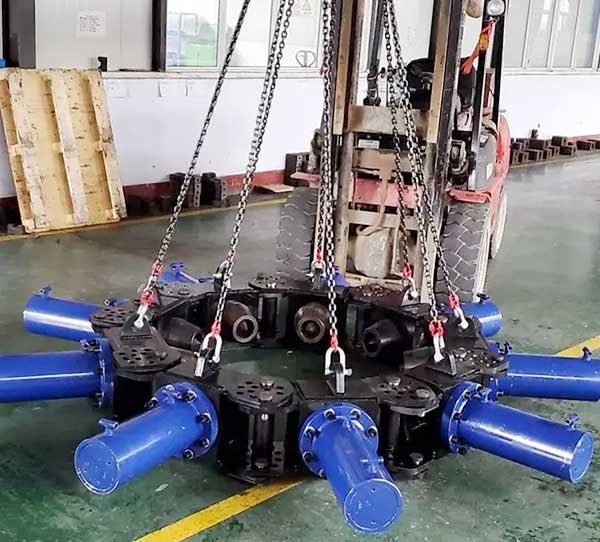

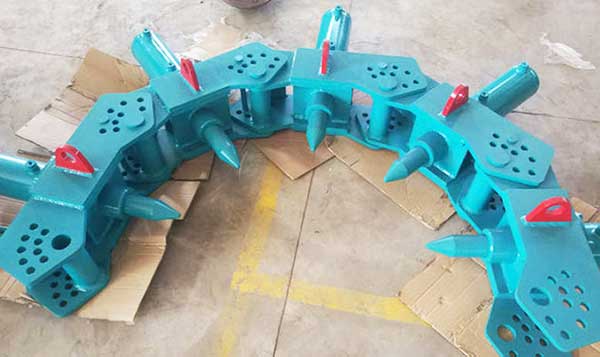

Hydraulic concrete pile cutter breaker

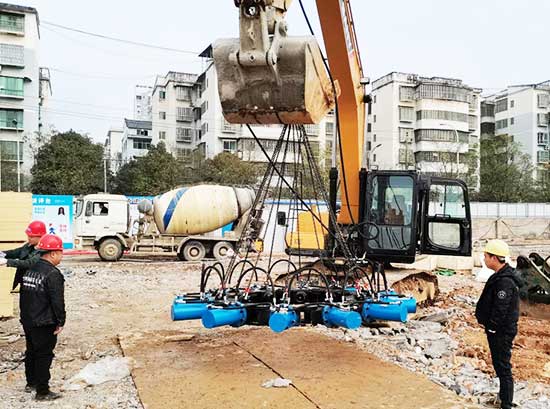

for excavator such as cast-in-place pile, prefabricated pile, etc.; from the shape of pile head, it can be divided into round pile breaker and square pile breaker. The pile breaker is widely used in high-speed rail bridges and pile foundation engineering of civil construction. Generally, the round pile cutter is suitable for pile diameters of 250mm-2500mm; the square pile cutter is suitable for pile sides 250-650mm, which can meet all kinds of Requirements for large-scale foundation construction.
|
Module Number |
PCS |
4 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
|
Combination total weight |
KG |
1600 |
2640 |
2970 |
3300 |
3630 |
3960 |
4290 |
4620 |
4950 |
5280 |
5610 |
5940 |
|
Pile diameter range |
mm |
400-600 |
600-800 |
800-1000 |
1000-1150 |
1150-1300 |
1300-1500 |
1500-1650 |
1650-1800 |
1800-1970 |
1970-2200 |
2200-2360 |
2360-2500 |
|
Hydraulic excavator |
T |
20T-30T |
30T-40T |
Hydraulic system/pump station |
|||||||||
|
Max.Thrust |
300KN |
Max. Cylinder required |
20L/min |
Machinery Tonnage |
≥20T |
Location pin Φ35 |
|||||||
|
Max. Cylinder Trip |
300mm |
Chisel diameter |
110mm |
Single module weight |
335KG |
||||||||
|
Max. Cylinder Pressure |
300MPa |
Max. Hoist Capacity |
≤500mm |
Single module size |
1015*865*340mm |
||||||||
