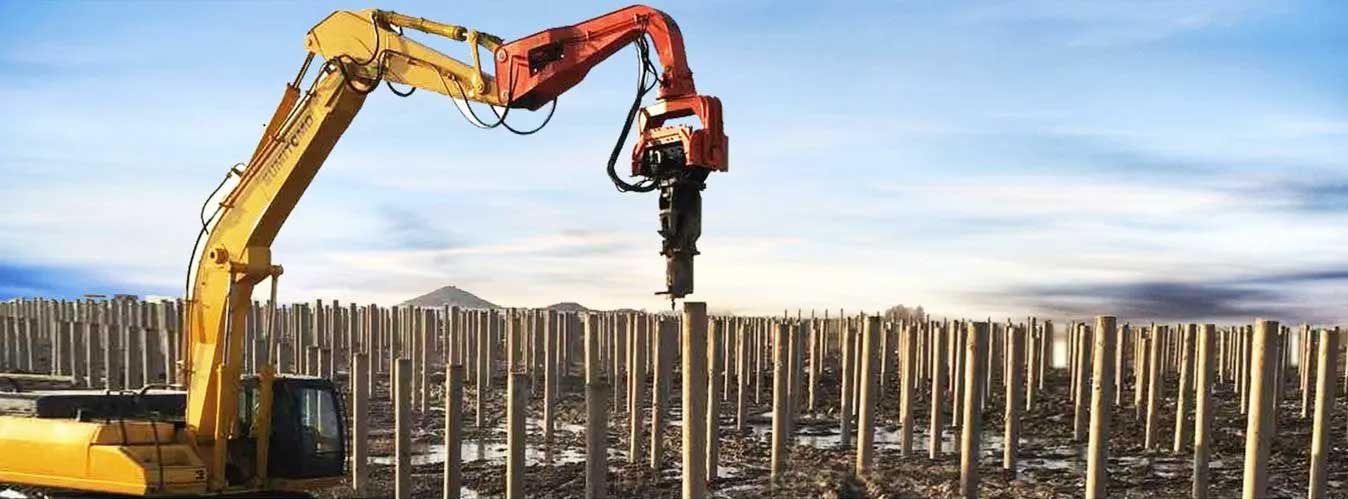

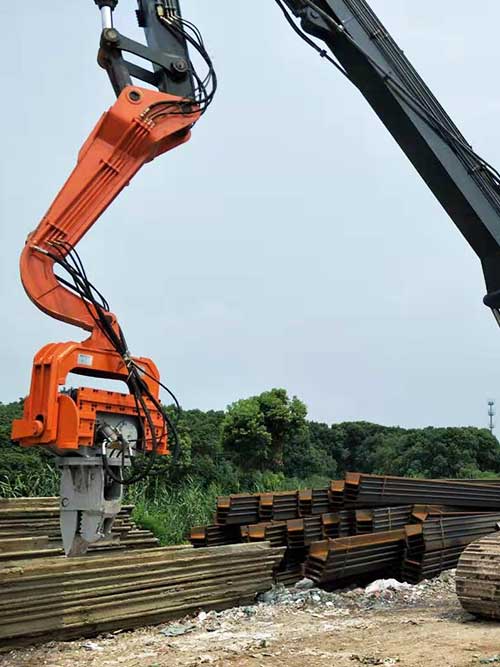

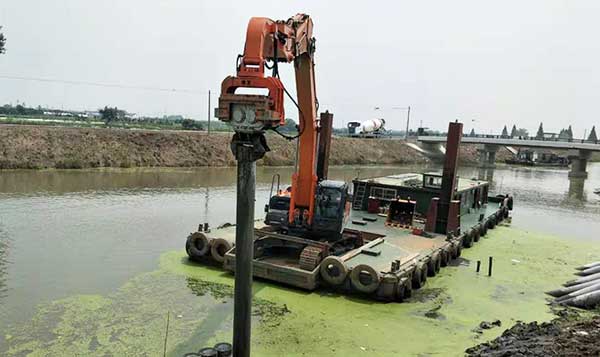

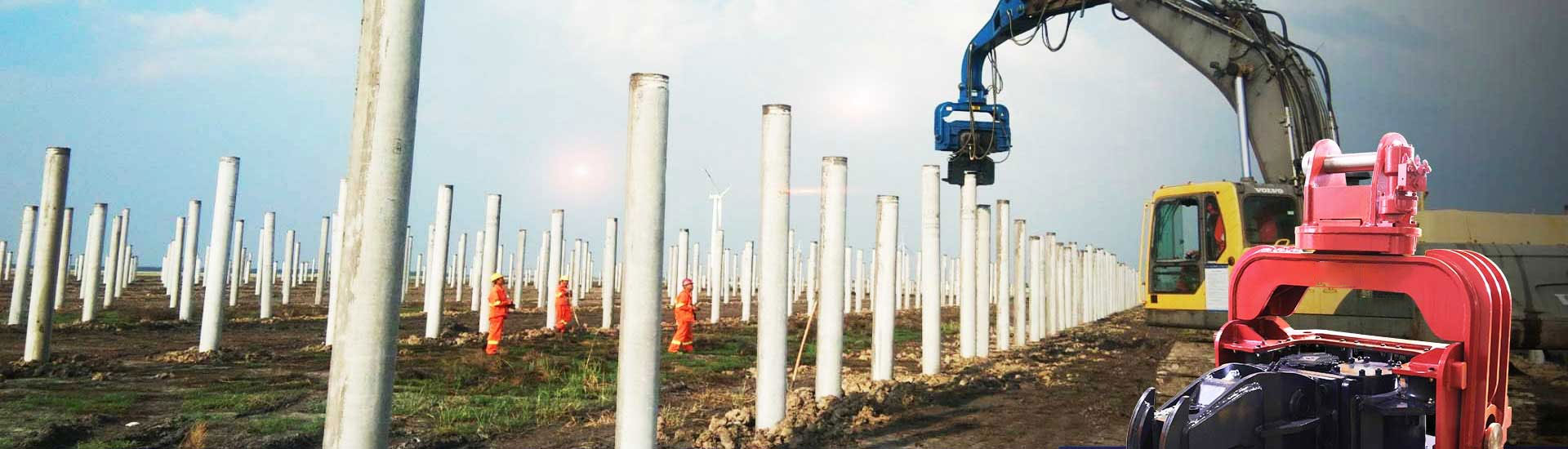

Pile drivers install piling to hold back earth during excavations, set up the foundation of skyscrapers and bridges, or builddocks and wharfs. Due to the wide range of work performed in this field. Different types of piles can be worked throughdifferent clamps,such as round piles, concrete piles, steel sheet piles, square piles.
l Powerful, Reliable, Versatility
l High productivity & efficiency
l Less environmental affection
l Easy operation & maintenance
l Upgrade the clamp jack force and check valve, safer and productivity
l Use the original Italy hydraulic motor, more powerful and reliable

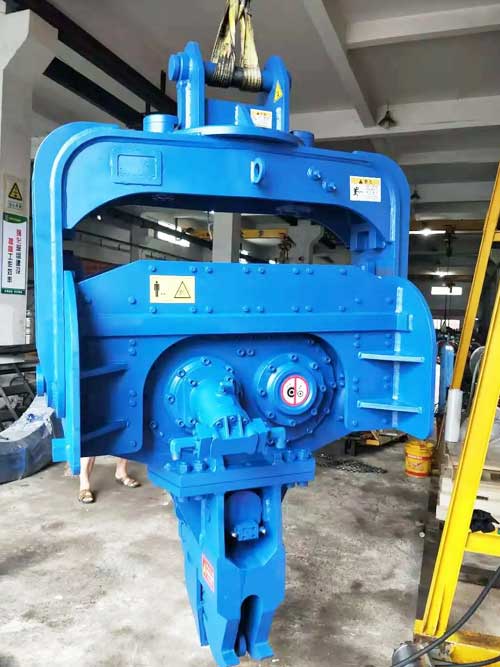

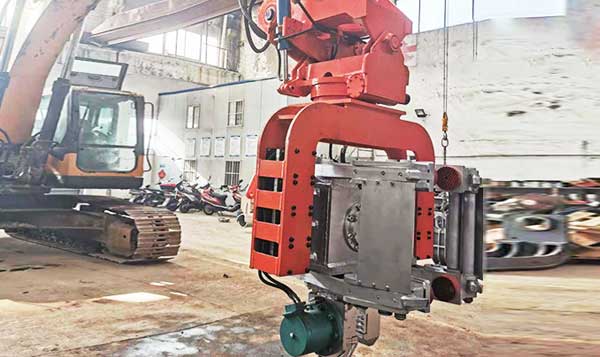

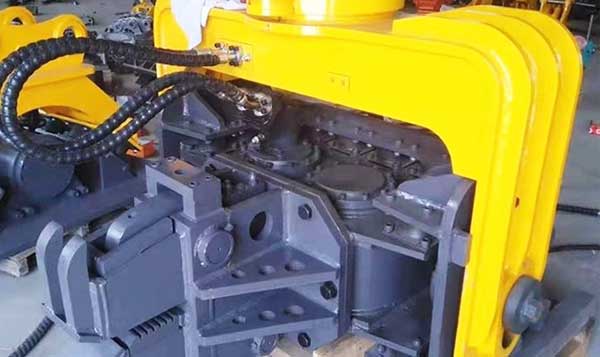

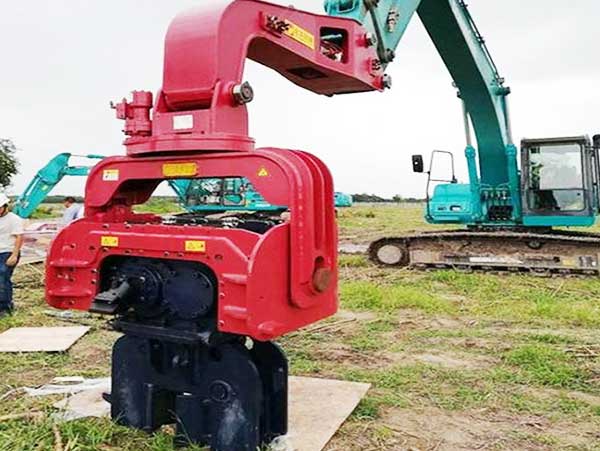

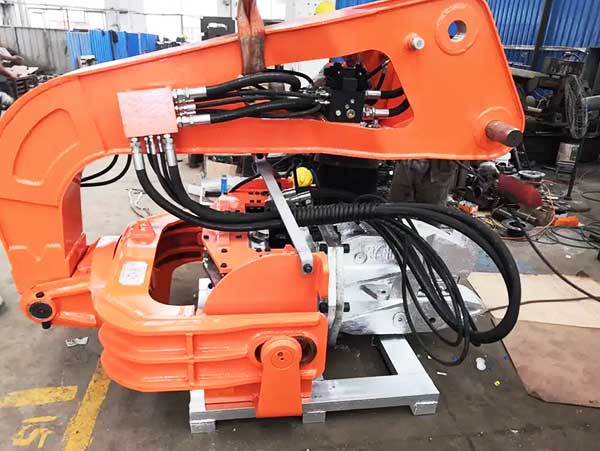

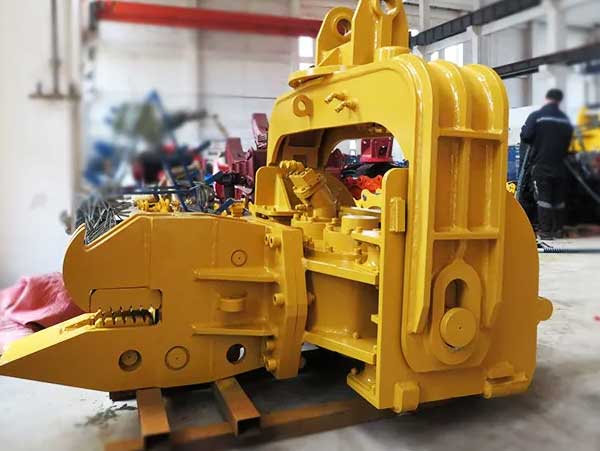

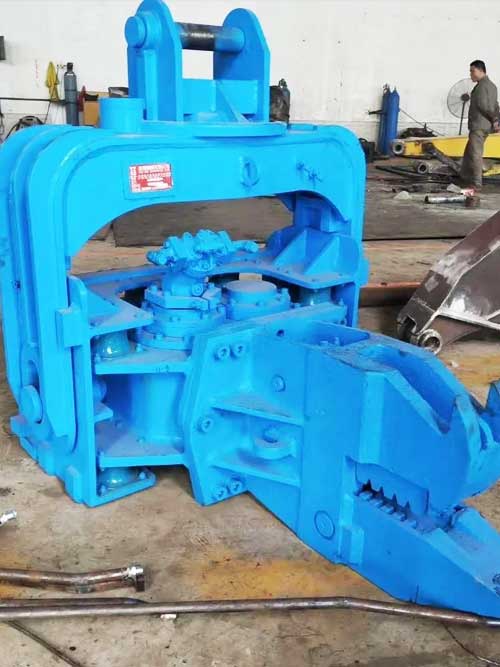

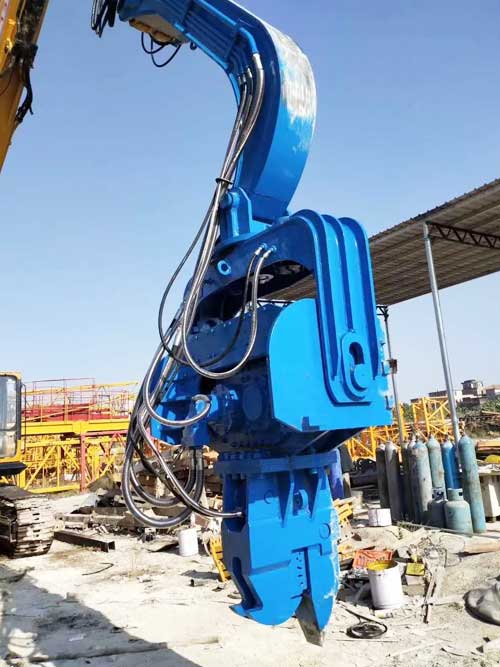

Hydraulic pile driver is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical

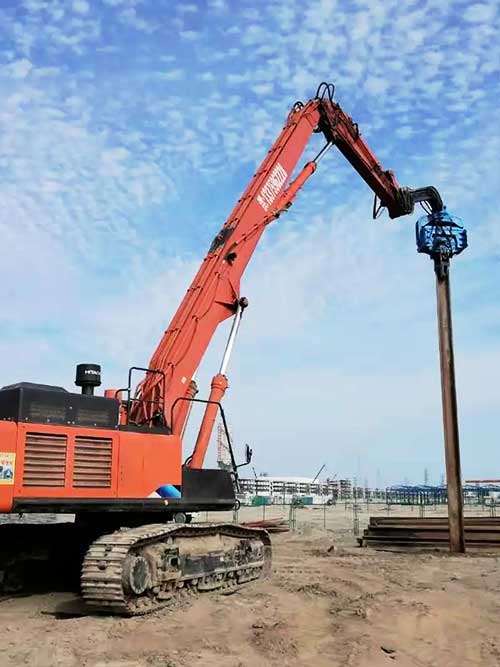

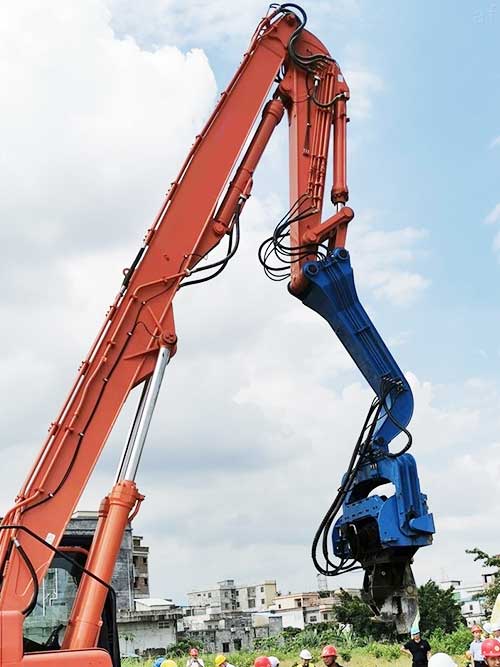

vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the
condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are
comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.
Model | Unit | RVH-08 | RVH-10 | RVH-14 |
Weight | kg | 2200 | 2500 | 2800 |
Vice arm weight | kg | 800 | 800 | 800 |
Vice arm length | m | 2.4 | 2.4 | 2.4 |
Eccentric torque | Nm | 40 | 50 | 65 |
Frequency | rpm | 2800 | 2800 | 2800 |
Pressure | bar | 285 | 285 | 300 |
Oil flow | lpm | 160 | 180 | 210 |
Operation weight | Ton | 20-24 | 24-32 | 30-40 |
Max pile length | m | 9 | 13 | 16 |
