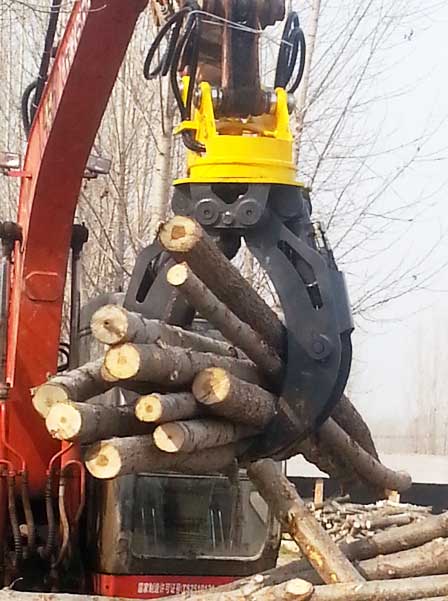

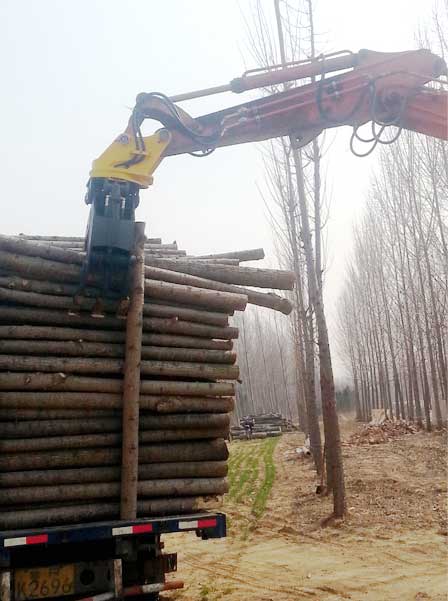

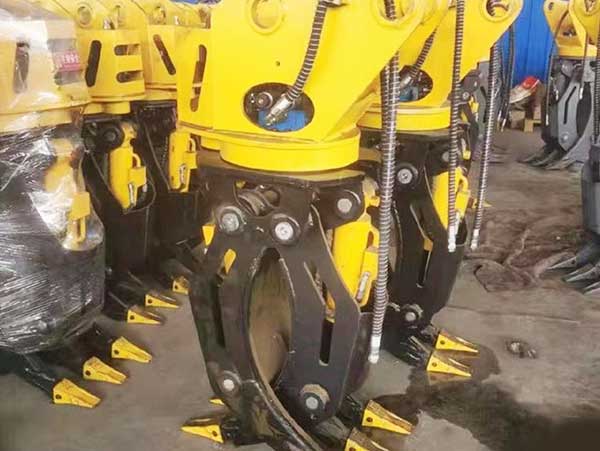

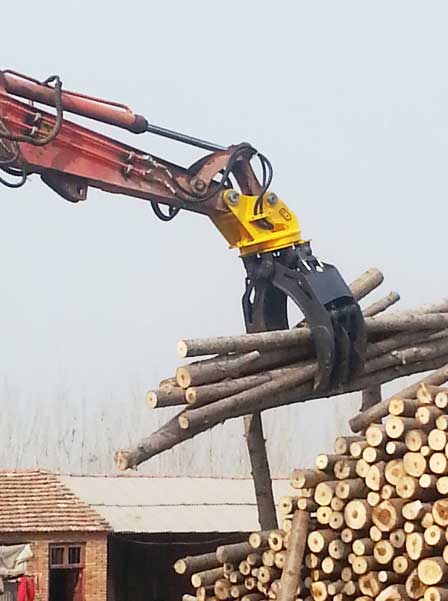

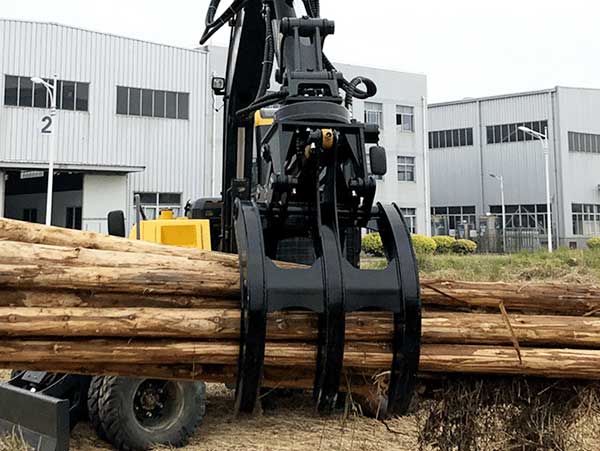

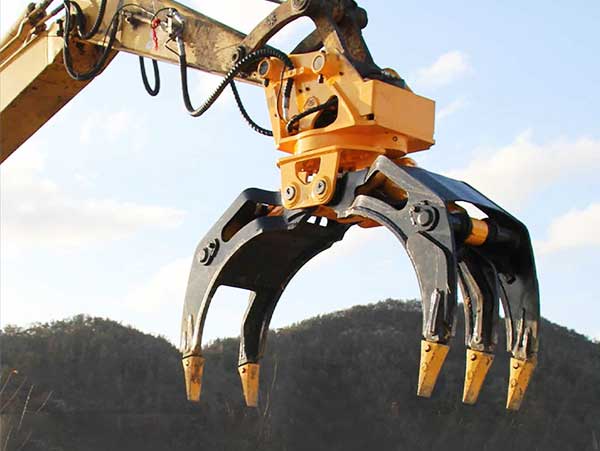

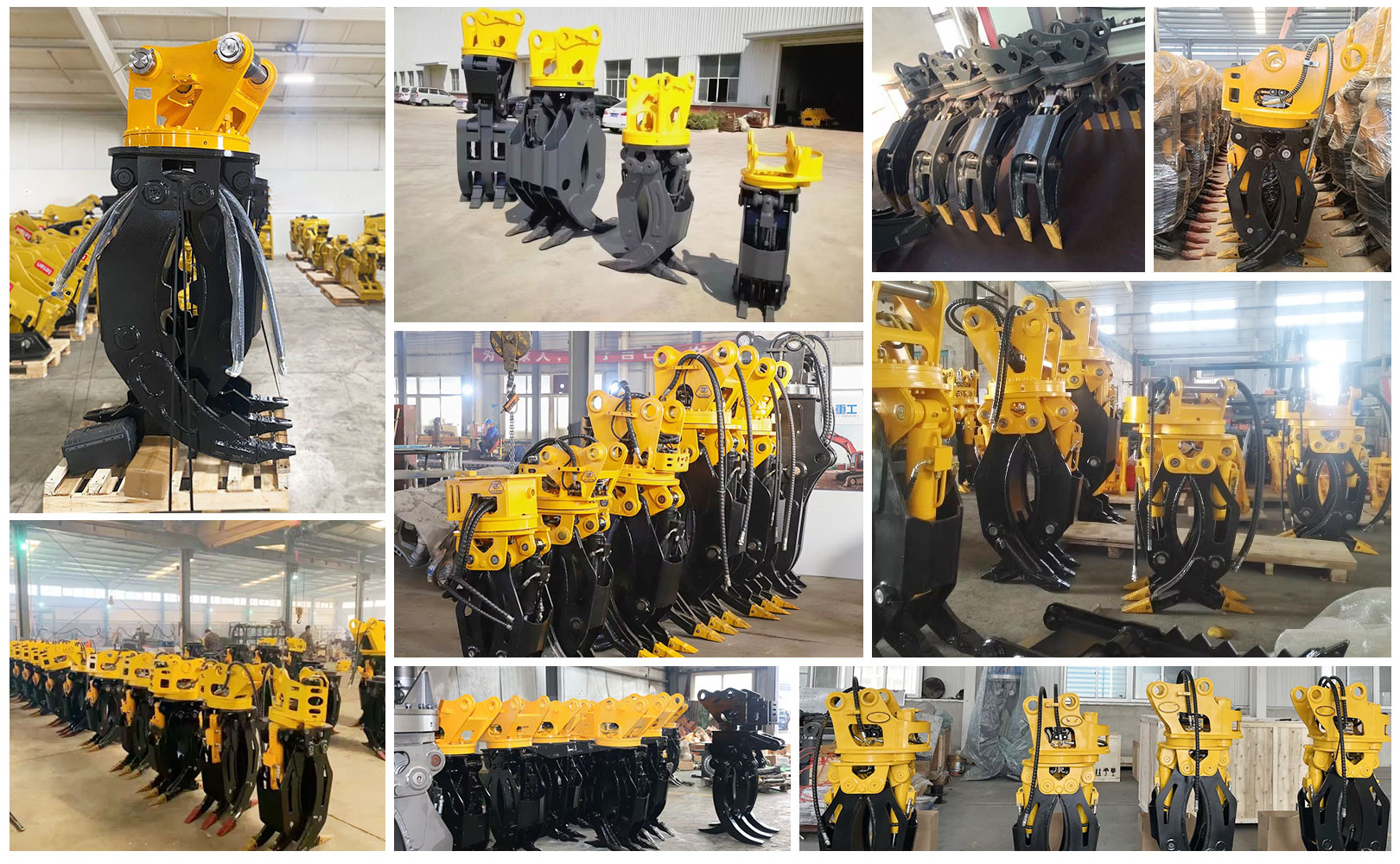

Hydraulic rotating grapple, is the more advanced grapple with rotary system that allows 360 degrees’ rotation for lifting with more versatility. Fitted to all excavators’ models. Single cylinder will be equipped for excavators under 3 tons, and double cylinders for over.
l Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system;
l Equipped with German-made M+S motor, more powerful and stable.
l Using handles to operate the grapple which is more comfortable and flexible for driver .
l Original German oil seals, balance valve, safety valve making cylinder more durable and safe.
l Brake valve making it safer from inertia or accidents.
l Suitable for 6-40 ton excavator
Characteristic: Designed & manufactured with extreme closing pressures to ensure minimal load loss, and Widest Jaw Opening in its class which improves operator productivity. Besides, with the special system of rotating, it could function better in grabbing materials around the excavator itself.

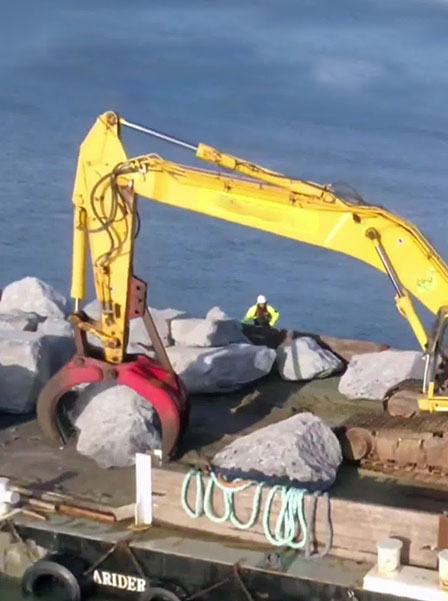

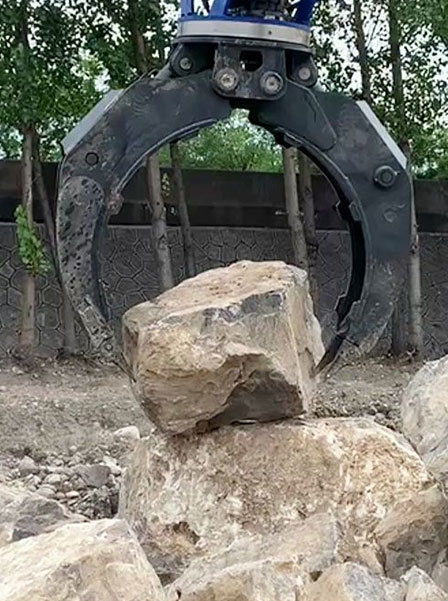

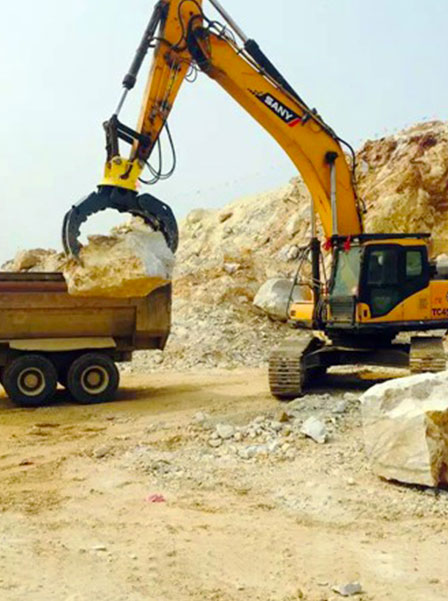

Applications: Hydraulic rotary grapples are designed and built for land clearing, waste materials handling, demolition, rock breaking, wall construction, etc.
Model | Ton Range | Weight (kg) | Max jaw opening （mm） | Oil Pressure (kg/cm2) | Set up pressure (kg/cm2) | Operating flux (L/min) | Cylinder Volume (ton) |
YG04 | 4-6T | 320 | 1300 | 110-140 | 170 | 30-55 | 4.0*2 |
YG07 | 7-11T | 390 | 1400 | 120-160 | 180 | 50-100 | 4.5*2 |
YG12 | 12-16T | 740 | 1800 | 150-170 | 190 | 90-110 | 8.0*2 |
YG17 | 17-23T | 1380 | 2300 | 160-180 | 200 | 100-140 | 9.7*2 |
YG24 | 24-30T | 1850 | 2500 | 160-180 | 210 | 130-170 | 12*2 |
YG31 | 31-40T | 1900 | 2500 | 180-200 | 250 | 200-250 | 12*2 |
YG41 | 41-50T | 2300 | 2700 | 180-200 | 250 | 250-320 | 14*2 |
