Dismantling objectDismantling of vehicles such as motorcycles, cars, vans, agricultural machinery, automobile engines, and tire hub separation,Compression and volume reduction of scrap steel materials, other crushing and shearing operations such as building demolition, steel shearing, etc.
l Lightweight and wear-resistant
l Built-in oil passage, high strength and good toughness
l Swiss imported motor, full-angle rotation
l Imported NOK oil seal, short working cycle and long service life.
l The knife block is resistant to high temperature and deformation.
l Please contact us for more models.

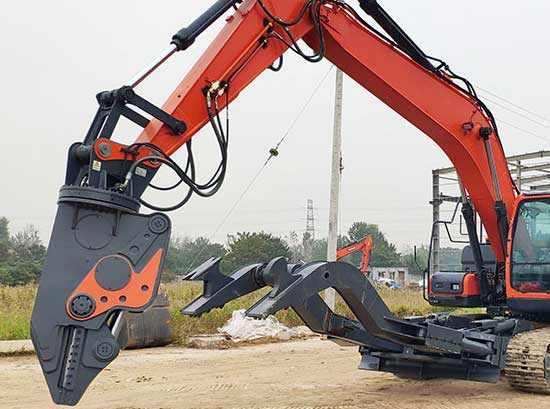

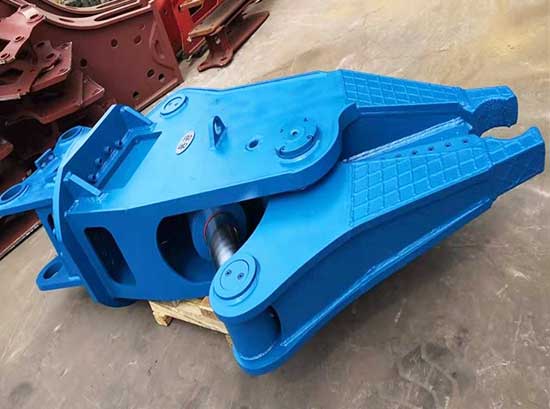

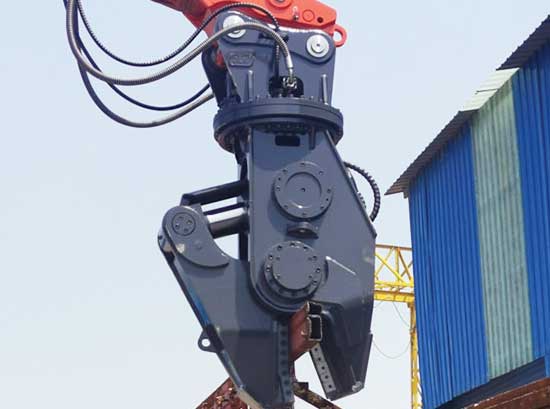

Hydraulic shear, also known as eagle-shaped shear, is a device that can reach the opening and closing of the jaw to achieve cutting.
The double oil cylinder body is equipped with a variety of different structures of the jaw, realizing the separation, and shearing removal in the rescue process, making the dismantle higher working efficiency.

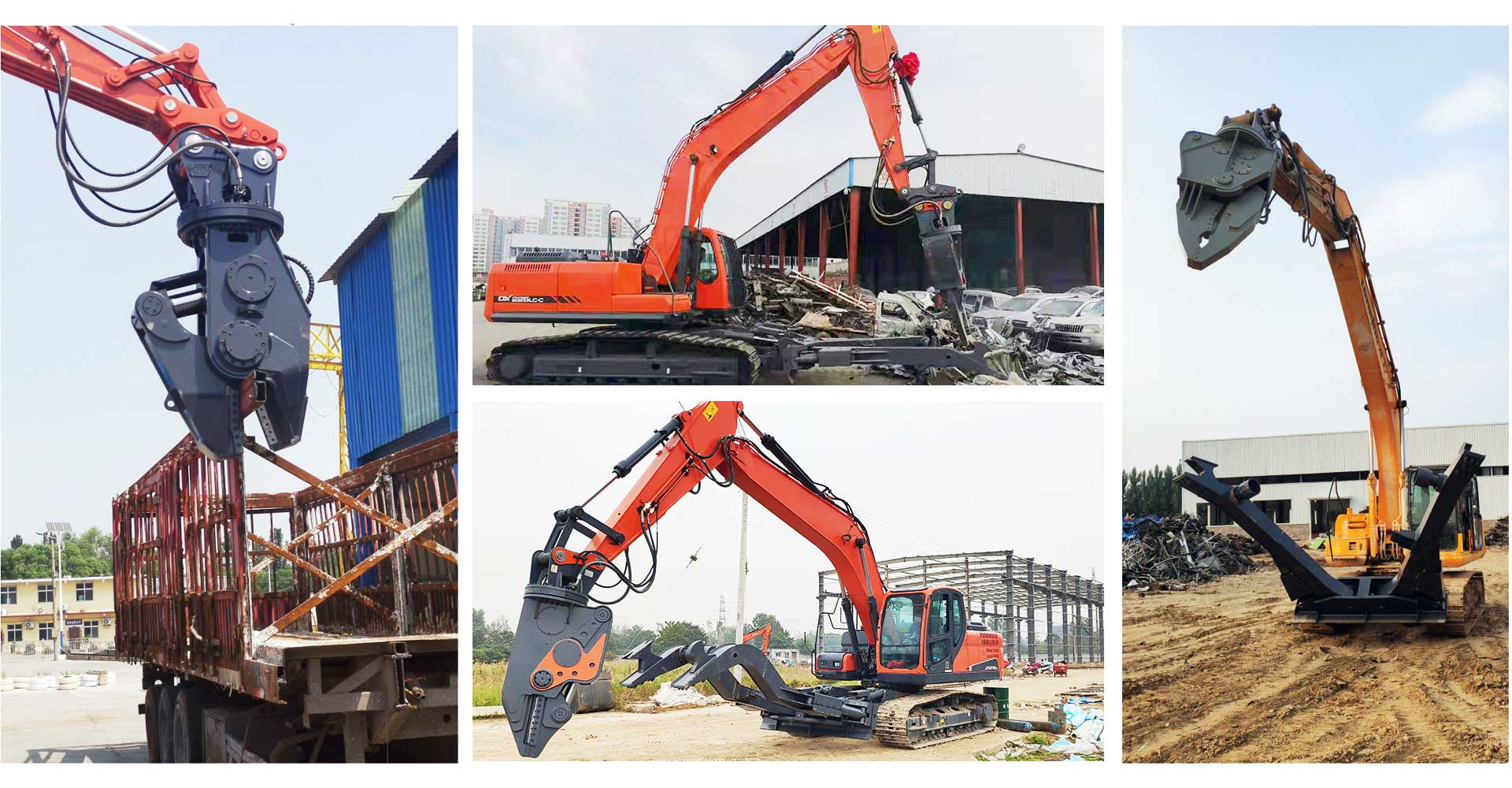

Single/Double Cylinder Shear is suitable for different operations, including demolishing steel structures, dismantling operations of vehicles, scrap steel treatment, and other applications, and cutting iron materials like steel, cans, pipes, etc.
For high-strength, large-quantity materials, high strength, and fast shearing speed
Item/Model | YGF40 | YGF50 | YGF80 | YGF180 | YGF280 | YGF380 | YGF480 |
Suitable Excavator(ton) | 3-4 | 4-5 | 6-8 | 12-18 | 20-30 | a:33+/b:24+ | b:40+ |
Weight（kg） | 330 | 450 | 800 | 1540 | 2800 | a:4300/b:4800 | b:6200 |
Driving Pressure（bar） | 200 | 240 | 240 | 300 | 3200 | 320 | 350 |
Driving Flow（L/min） | 60 | 80 | 150 | 250 | 280 | 350 | 400 |
A Opening A（mm） | 225 | 375 | 505 | 680 | 740 | 800 | 920 |
B Cutting Depth B（mm） | 180 | 280 | 400 | 500 | 550 | 650 | 750 |
C Overall Length C（mm） | 1120 | 1310 | 1570 | 1950 | 2207 | a:3200/b:4000 | b:5000 |
D1/D2 Blade Length D1/D2（mm） | 165+103 | 205+155 | 260+175 | 325+210 | 350+260 | 350+360 | 400+400 |
Shearing Force（mm） | 37 | 50 | 62 | 106 | 156 | 250 | 350 |
Shearing Force | 24 | 32 | 43 | 100 | 100 | 150 | 200 |
