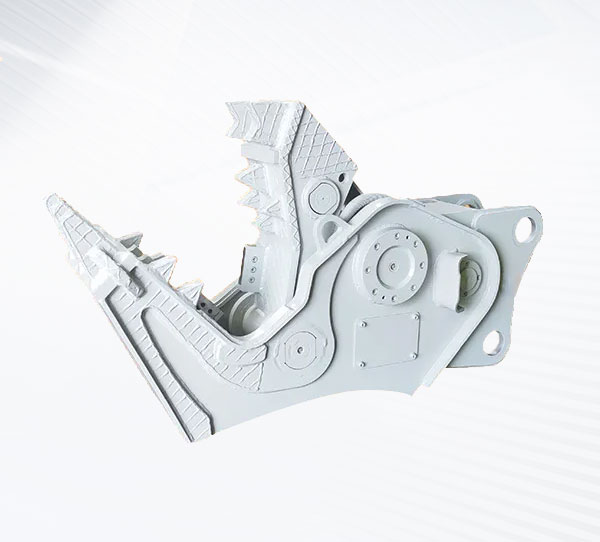

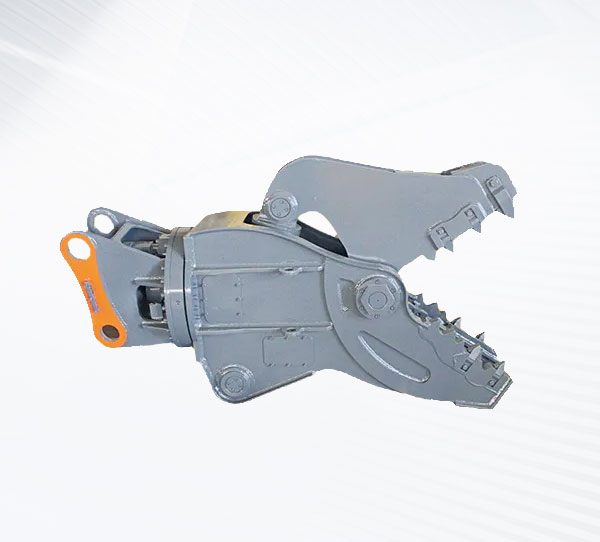

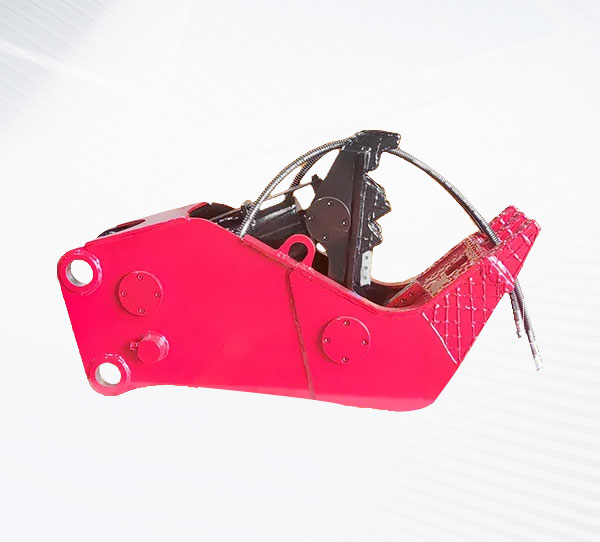

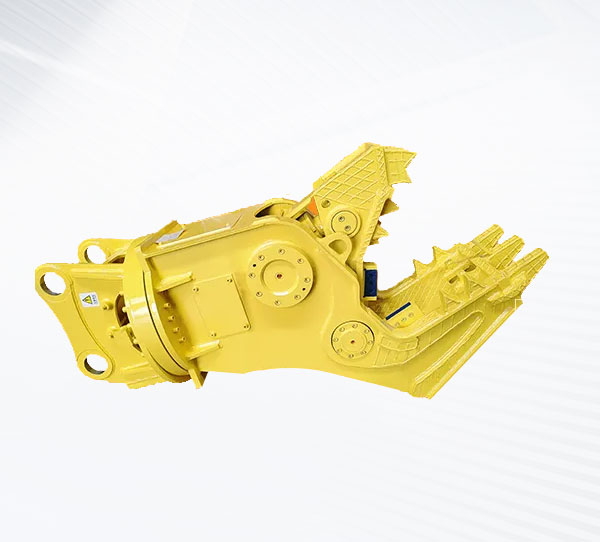

Yugong crushing pliers are divided into five categories: articulated cylinder crushing pliers, inverted cylinder crushing pliers, rotating crushing pliers, rotating severely crushing pliers and small crushing pliers. Among them, the hinged shaft cylinder crusher, the inverted cylinder crusher and the small crusher are basic non-rotatable crushers. Rotary crushing tongs and rotating severe crushing tongs are highly matched crushing tongs, which can increase 360-degree rotation.
l Made of Swedish Hardox 500 steel, light in weight and wear-resistant;
l The pin shaft is made of 42CrMo alloy steel, which has high strength and good toughness;
l The rotary type adopts the swiss imported rotary motor;
l The oil cylinder adopts honing tube and imported HALLITE oil seal, which has a long service life;

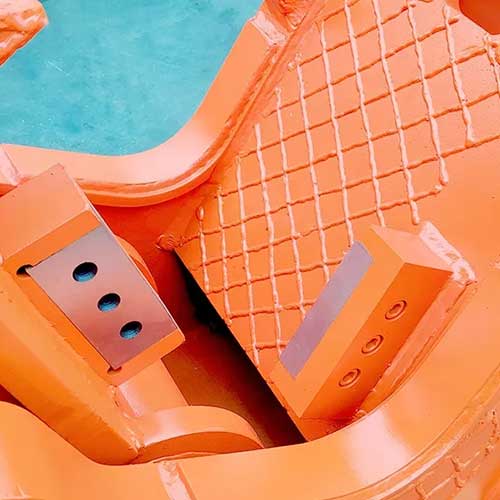

l The knife block is made of wear-resistant alloy steel, which is resistant to high temperature and deformation;
l Various product models

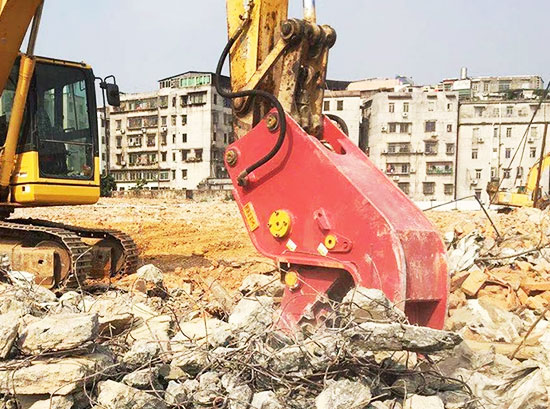

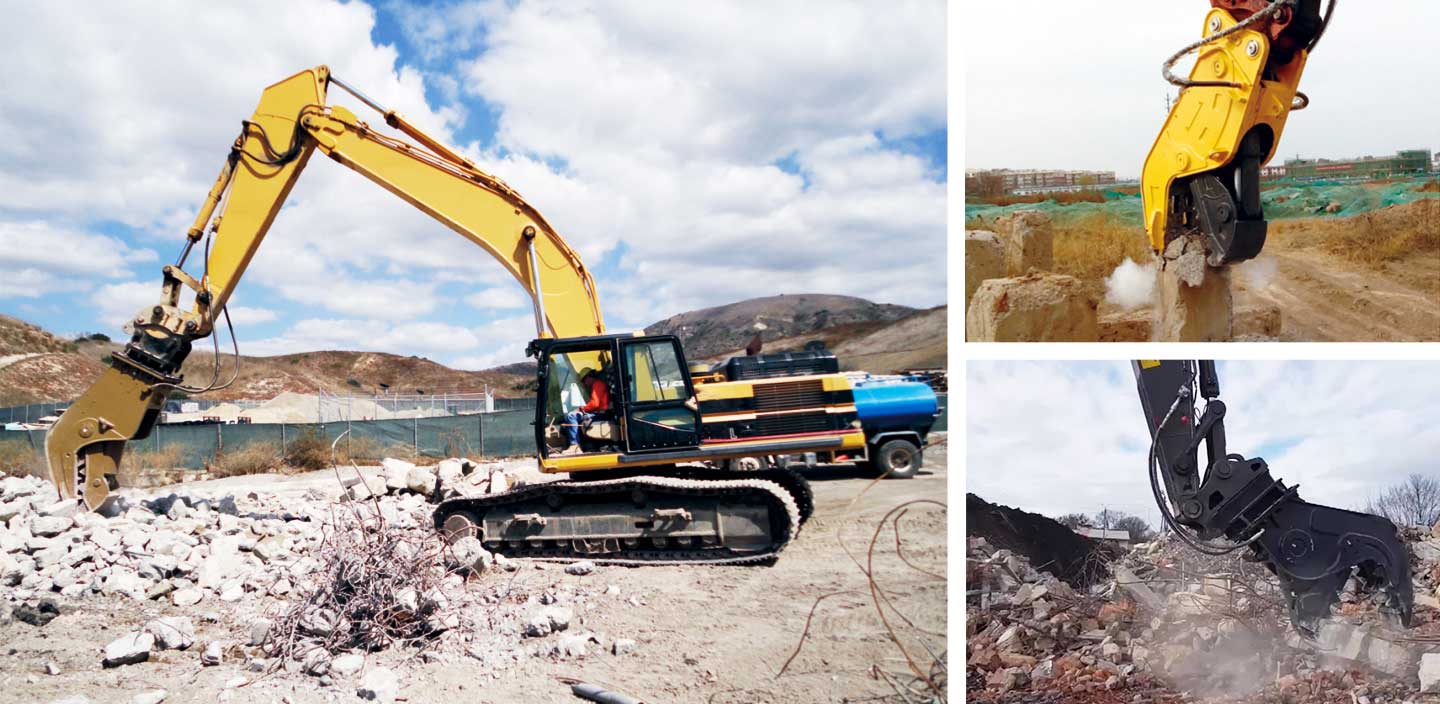

The crushing tongs, commonly known as "crocodile mouth", are specially used with excavators. They are flexible in operation, effectively utilize the hydraulic power of the excavator, give full play to the mobility of the excavator, greatly save costs, improve work efficiency, and make the demolition project move forward. In the new stage, let your excavator achieve multiple functions and improve investment efficiency. Especially suitable for house demolition, concrete crushing, steel bar cutting and other projects.

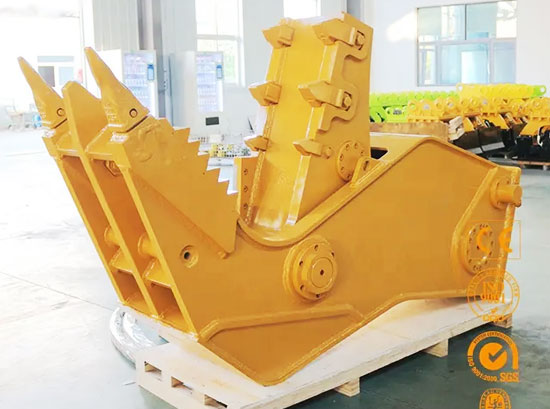

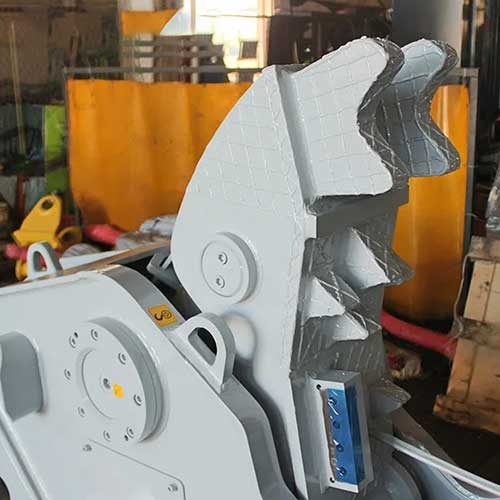

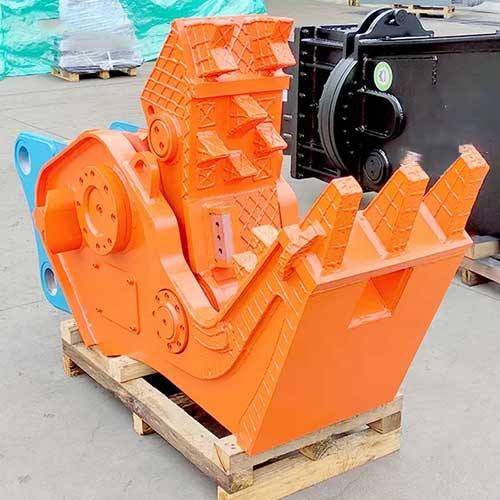

The crushing tongs are composed of the upper jaw, shell, cylinder, blade, wear-resistant teeth and other accessories. The rotating type adds a rack, motor, slewing support, and rotary joint, so that the crushing tongs can be opened and closed quickly, and the rotating type can be opened and closed quickly. It rotates 360 degrees, and has the characteristics of wide opening range, strong crushing force,
superior removal and recycling performance, simple structure and easy maintenance, and replaceable blades to extend the service life.
The crushing tongs have the characteristics of reasonable structure, not easy to damage, simple maintenance, high working efficiency, no damage to the excavator, and low working noise. During the demolition operation, the concrete can be crushed to take out the steel bars and cut the steel bars, which greatly improves the work efficiency.
|

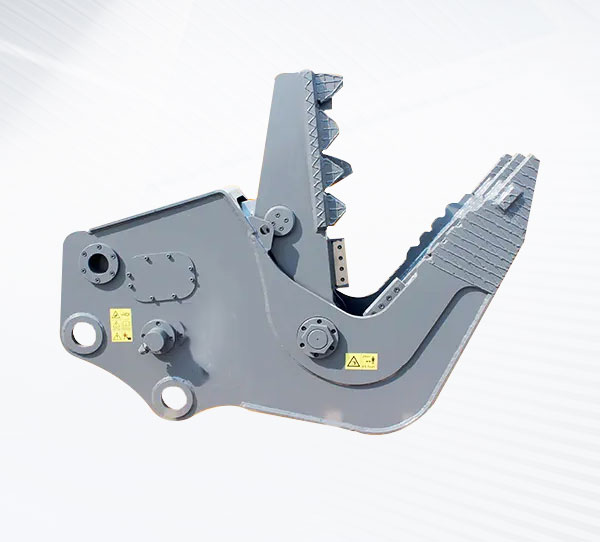

Heavy-duty Hydraulic Pulverizer
|
||||
|
Item/Model
|
Unit
|
YG740
|
YG875
|
YG1000
|
|
Suitable Excavator
|
ton
|
10-15
|
18-26
|
30-37
|
|
Weight
|
kg
|
1200
|
1760
|
2800
|
|
Opening
|
mm
|
740
|
875
|
1000
|
|
Blade Length
|
mm
|
200
|
230
|
250
|
|
Length
|
mm
|
1400
|
1736
|
2130
|
|
Width
|
mm
|
440
|
550
|
680
|
|
Crushing Force
|
ton
|
65
|
90
|
150
|
|
Driving Pressure
|
bar
|
300
|
320
|
320
|
|
Driving Flow
|
lpm
|
150
|
200
|
250
|
1. YG crusher designed with compact structure as compared with wide opening width.
2. Cylinder demonstrates the strong power and has excellent durability.
3. JAW which is made of strong quality of the material and heat treatment is light and has excellent abrasion-resistant.
4. Grease is injected with a special structure for each part is sealing process.
5. Really simple head adjustment device maximize the operation efficiency
6. YG crusher can be suitable for a variety of working environment, not only outstanding performance in handling broken-dismantled work, but also in recycling of concrete material.
