Rock rippers / Frost rippersYugong machinery customize made heaps rock rippers for different machines. Now YG has made rippers from 1T to 65T for excavators, to fit standard hitch or S30-S80 Euro style hitch, we also make some for CW and MS style hitch.Some customers like a ripper light and cost less, some customers like a ripper heavy and rock duty. YG can customize at your request.
l Made of high strength steel plate, easy to install, easy to use.
l Installed with high strength ripper teeth, strong digging capacity;
l Convenient for digging and loading at the same time, high efficiency.
l Suitable for shoving hard substances such as hard rocks,frozen ground, stone and weathered granite to facilitate later operation.
l
l

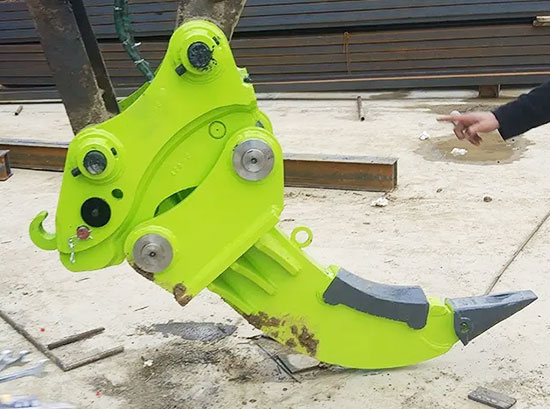

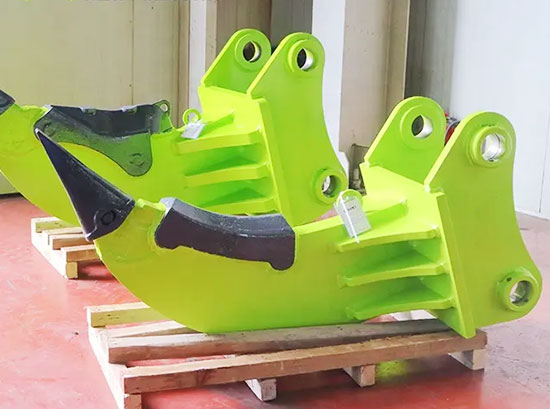

Rock rippers / Frost rippers
Yugong machinery customize made heaps rock rippers for different machines.

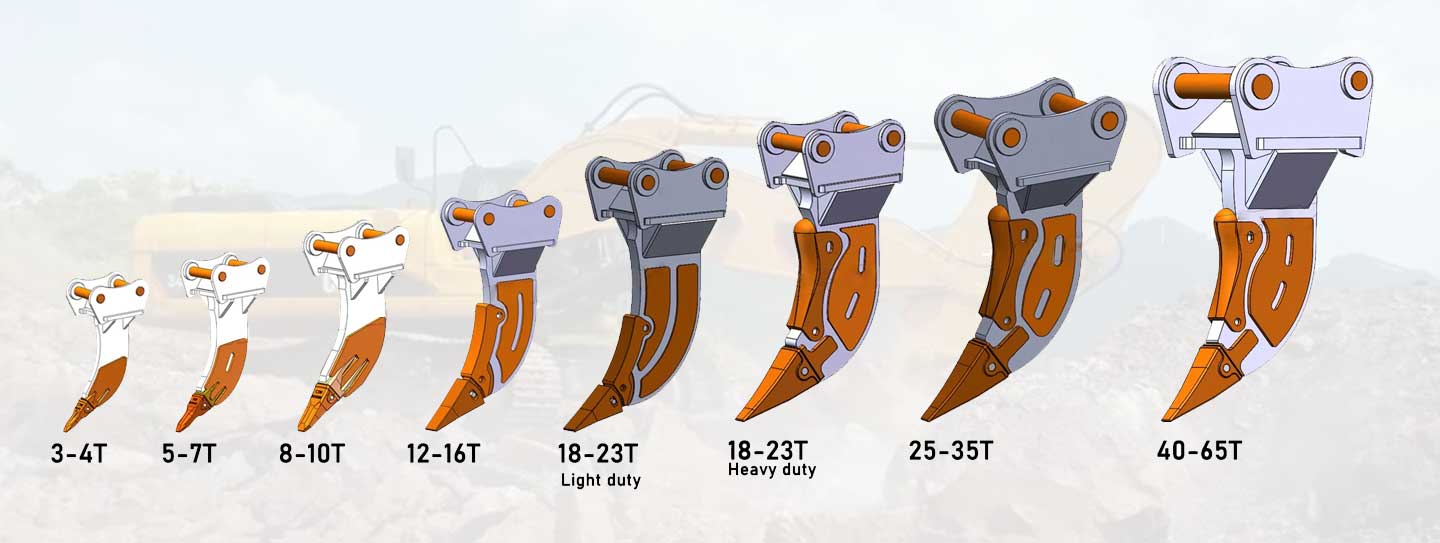

Now YG has made rippers from 1T to 65T for excavators, to fit standard hitch or S30-S80 Euro style hitch, we also make some for CW and MS style hitch.
Some customers like a ripper light and cost less, some customers like a ripper heavy and rock duty. YG can customize at your request.
|
Item/Model |
Unit |
YG02 |
YG04 |
YG06 |
YG08 |
YG10 |
YG14 |
YG17 |
|
Suitable Excavator |
ton |
4-6 |
5-9 |
9-16 |
16-23 |
23-30 |
30-39 |
40-49 |
|
A:Pin to Pin Distance |
mm |
265 |
310 |
390 |
465 |
520 |
570 |
|
|
B:Overall Width |
mm |
375 |
420 |
570 |
665 |
740 |
820 |
820 |
|
C:Overall Height |
mm |
390 |
950 |
1180 |
1260 |
1380 |
1470 |
1520 |
|
D:Pin Diameter |
mm |
40-50 |
50-55 |
60-70 |
70-80 |
80-90 |
80-90 |
90-110 |
|
E:Dipper Width |
mm |
150-180 |
180-200 |
200-315 |
300-350 |
360-420 |
360-420 |
400-500 |
|
Plate Thickness |
mm |
50 |
55 |
65 |
80 |
90 |
90 |
90 |
|
Teeth Model |
type |
DH55 |
DH150 |
DH220 |
D85C |
4T5502-2 |
4T5502-2 |
4T5502-2 |
|
Weight |
kg |
60 |
160 |
245 |
420 |
620 |
775 |
825 |
