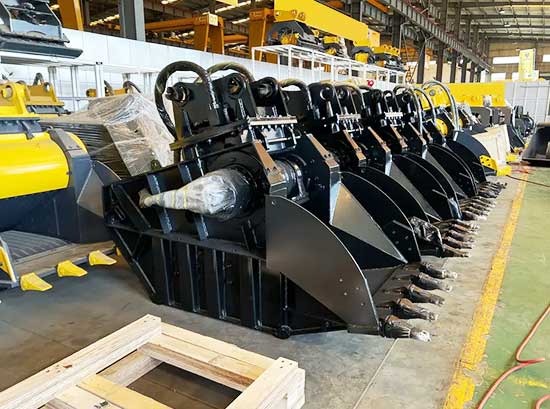

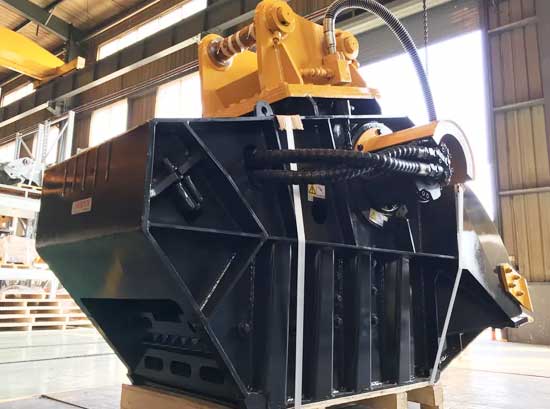

Our crusher bucket is widely used for crushing various ores and bulk materials in mining, building materials, highway, railroad, water conservancy, chemical industry, etc.
l The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
l Simple structure, reliable work and low operating costs.
l Equipment energy saving: single machine energy saving 15% to 30%, system energy saving more than double.
l the discharge opening adjustment range is large, to meet the requirements of different users.
l low noise, less dust.
l

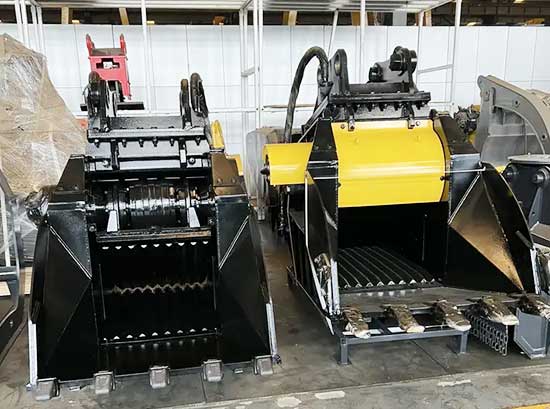

Its way of working consists on a bucket with two crushing jaws inside,one of them is fixed and the other one is driven by motor directly and moves back and forth relative to it, has a unique, aggressive figure-eight crushing motion that produces high quality cubical product,enabling the aggregate to be reused on site.
By reversing the rotation, clogged materials can be easily released. The upper and lower jaw plates can be exchanged with each other, and the rear and front sections can be exchanged. We are using direct drive system which makes maintenance much easier. The reinforcing bars can be easily removed from crushed reinforcement.
Model | YG-120 | YG-200 | YG-300 | YG-670 | YG-870 |
Excavator Weight(t) | 10-18 | 18-30 | 30-45 | 50-70 | 75-90 |
Bucket Capacity(m3) | 0.45 | 0.74 | 1.15 | 1.47 | 2.23 |
Oil Flow(l/min) | 180 | 260 | 260 | 450 | 600 |
Feed Size(mm) | 400*550 | 500*700 | 500*1000 | 670*1150 | 670*1316 |
Adjustment size(mm) | 1617*1055*1313 | 2506*1325*1731 | 2346*1576*1665 | 2882*2105*2137 | 2882*2271*2137 |
Over Weight(kg) | 1359 | 3450 | 4220 | 6850 | 7668 |
