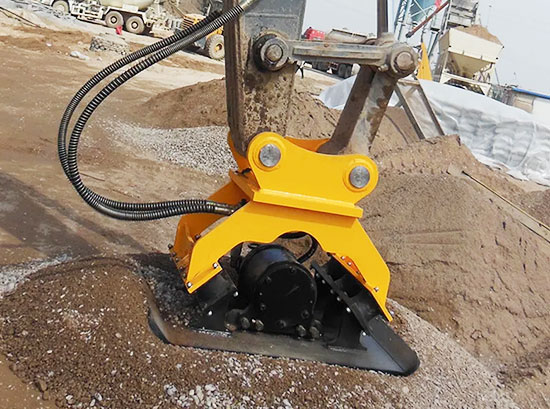

Excavator vibrating tamping rammer is mainly used with excavator, installed in the original bucket position on the front-end of boom, using the excavator's hydraulic drive and control. Simple structure, convenient in operation and maintenance. Applicable to a variety of terrain and a variety of operation ways. It can complete plane compaction, inclined plane compaction, the steps to consolidate, cement pits of groove and other complex foundation ramming processing.
l Adopt Q345 manganese plate steel, high strength and corrosion resistance;
l The pin shaft is made of 42CrMo alloy steel, with built-in oil passage, high strength and good toughness;
l The motor adopts the hydraulic vibration motor imported from the United States, which is durable;
l The bearings are FAG bearings imported from Germany, with low noise, safety and reliability;
l The damping block adopts South Korea's Autox, which is flexible and wear-resistant.
l

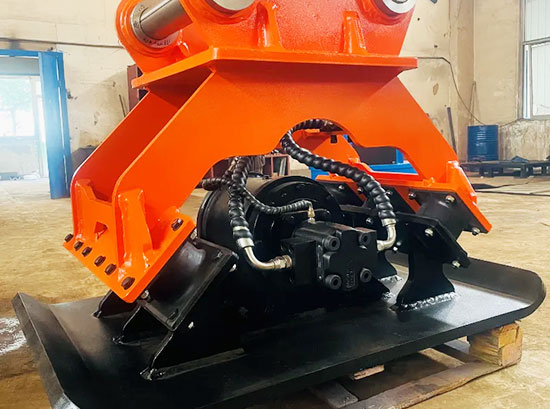

Vibratory compactor belongs to the equipment used for excavators, which is used for tamping the ground. It can tamp the plane, slope, step, groove, pit, corner, abutment back, etc. It is widely used in the tamping industry and is often used with vibratory roller.
Item/model | Unit | L02 | L04 | L06 | L08 | L10 |
Excavator | tons | 3-6 | 6-9 | 10-16 | 18-24 | 25-35 |
Power of Impulse | tons | 4 | 4 | 6.5 | 15 | 20 |
Max vibration frequency | ppm | 2000 | 2000 | 2000 | 2000 | 2000 |
Pressure | kg/cm2 | 100-130 | 100-130 | 100-130 | 150-200 | 150-200 |
Weight | kg | 300 | 300 | 500 | 900 | 950 |
Bottom size | mm | 800*500*25 | 900*550*25 | 1180*700*28 | 1350*900*30 | 1350*900*30 |
Height | mm | 700 | 760 | 920 | 1060 | 1100 |
