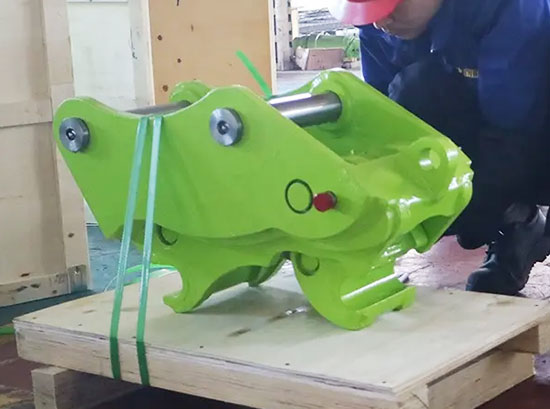

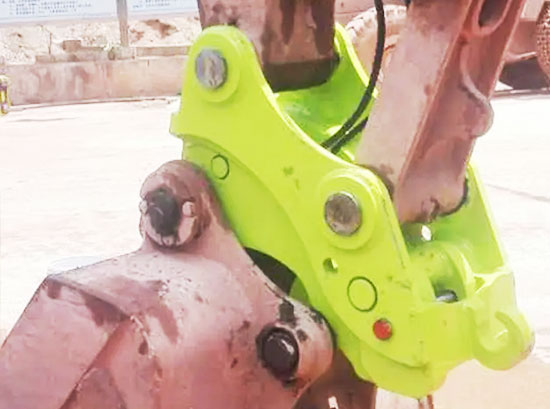

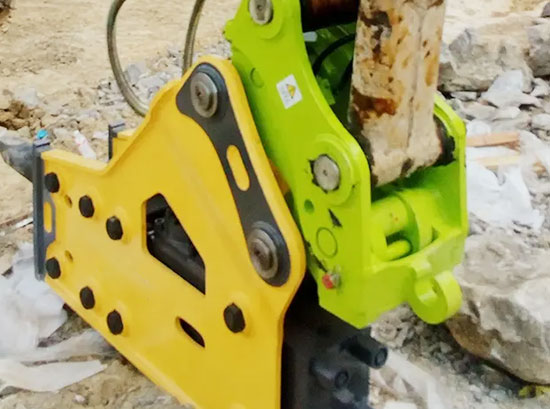

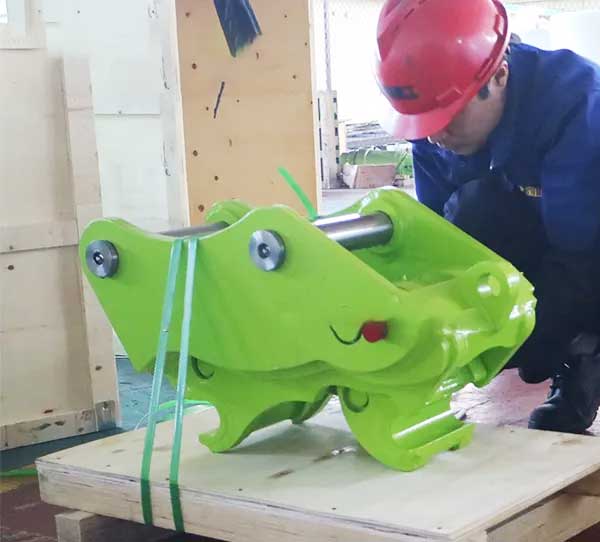

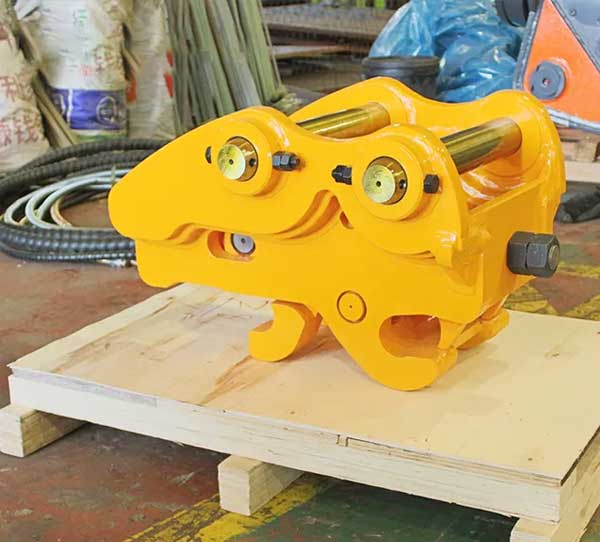

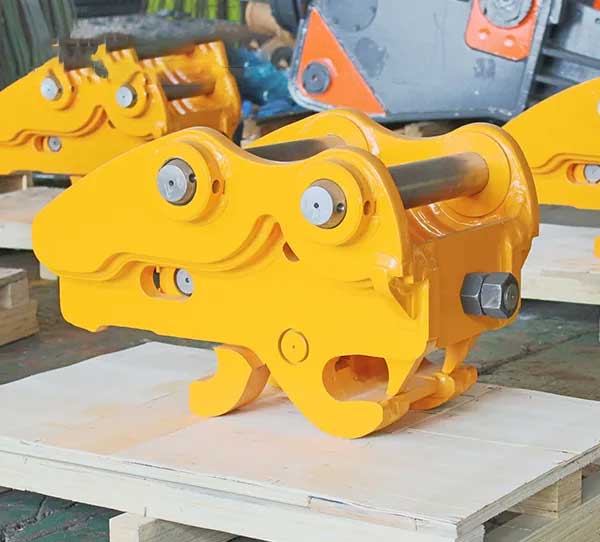

Yugong series hydraulic quick hitch can be applicable to any position, such as horizon compaction, step compaction, brige abutment, the trench pit compaction, subgrade compaction,the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
l Our hydraulic quick hitch can also be used for pulling piles and broken when necessary.
l Specially designed 45degree inclined vibration-proof rubber absorbs and minimizes shock power.
l Longer lifetime of damper.
l No pressure adjustment due to a high pressure generating motor.
l
l
Item/Model | Unit | JSMINI | JS45 | JS50/55 | JS60/65 | JS70/80 | JS90 | JS100/110 |
Suitable Excavator | ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
Weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1473 |
Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pin to Pin Center Distance | mm | 80-150 | 230-270 | 390-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Retractable Distance of Oil Cylinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Working Pressure | kg/cm2 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
Required Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
