The mini excavator can work in a small field, especially suitable for planting, trenching, fertilizing, weeding, etc. in orchards such as kiwifruit, vineyards, oranges, and navel oranges. This equipment can be attached with different attachments to achieve the functions of digging, crushing, hook clearing, drilling, and bulldozing.
l Excavators with compact dimensions can easily drive through narrow passages.
l Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
l Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
l Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
l The operator area is spacious and laid out to provide comfort.
l Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
When we talk about the excavator, we will first think abou the 20-ton or 30-ton crawler excavator. But in some small-scale construction sites, they can not be used. What should we do? Actually, you need a mini excavator for sale. Learn more about the small excavator.
The mini excavator can work in a small field, especially suitable for planting, trenching, fertilizing, weeding, etc. in orchards such as kiwifruit, vineyards, oranges, and navel oranges. This equipment can be attached with different attachments to achieve the functions of digging, crushing, hook clearing, drilling, and bulldozing.

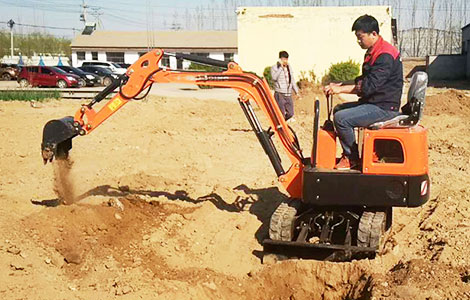

Dig a hole

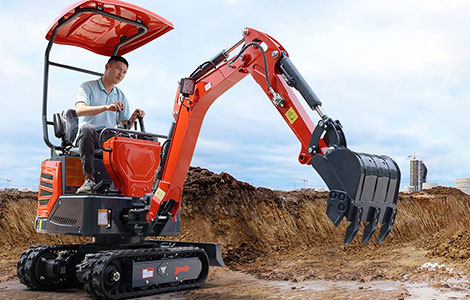

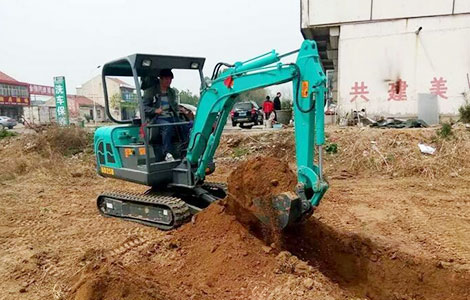

Dig a ditch
Dig a foundation

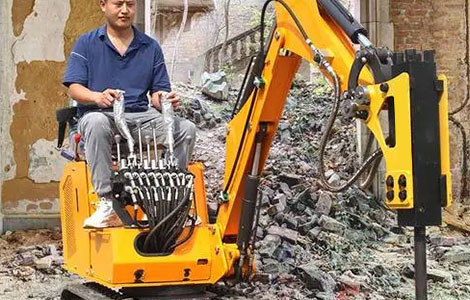

Crush stone

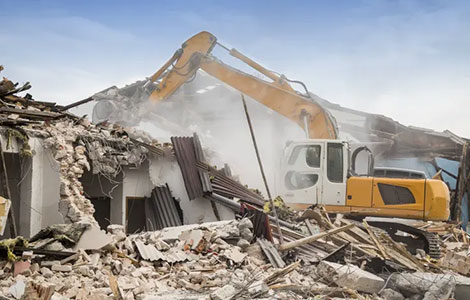

Demolish building

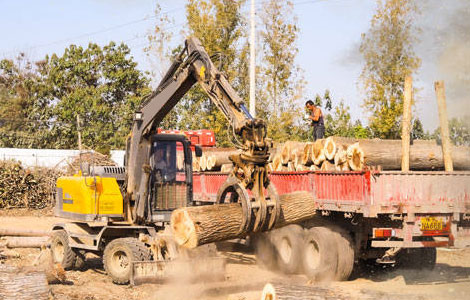

Carry large wood

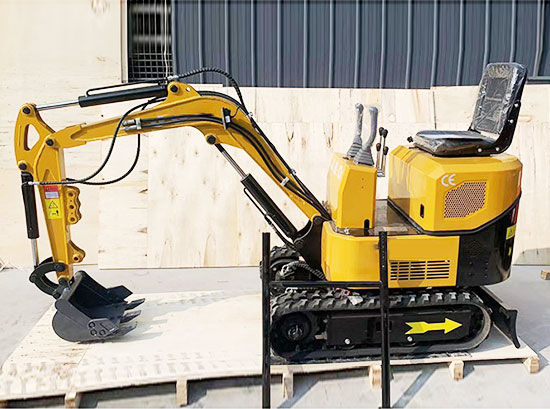

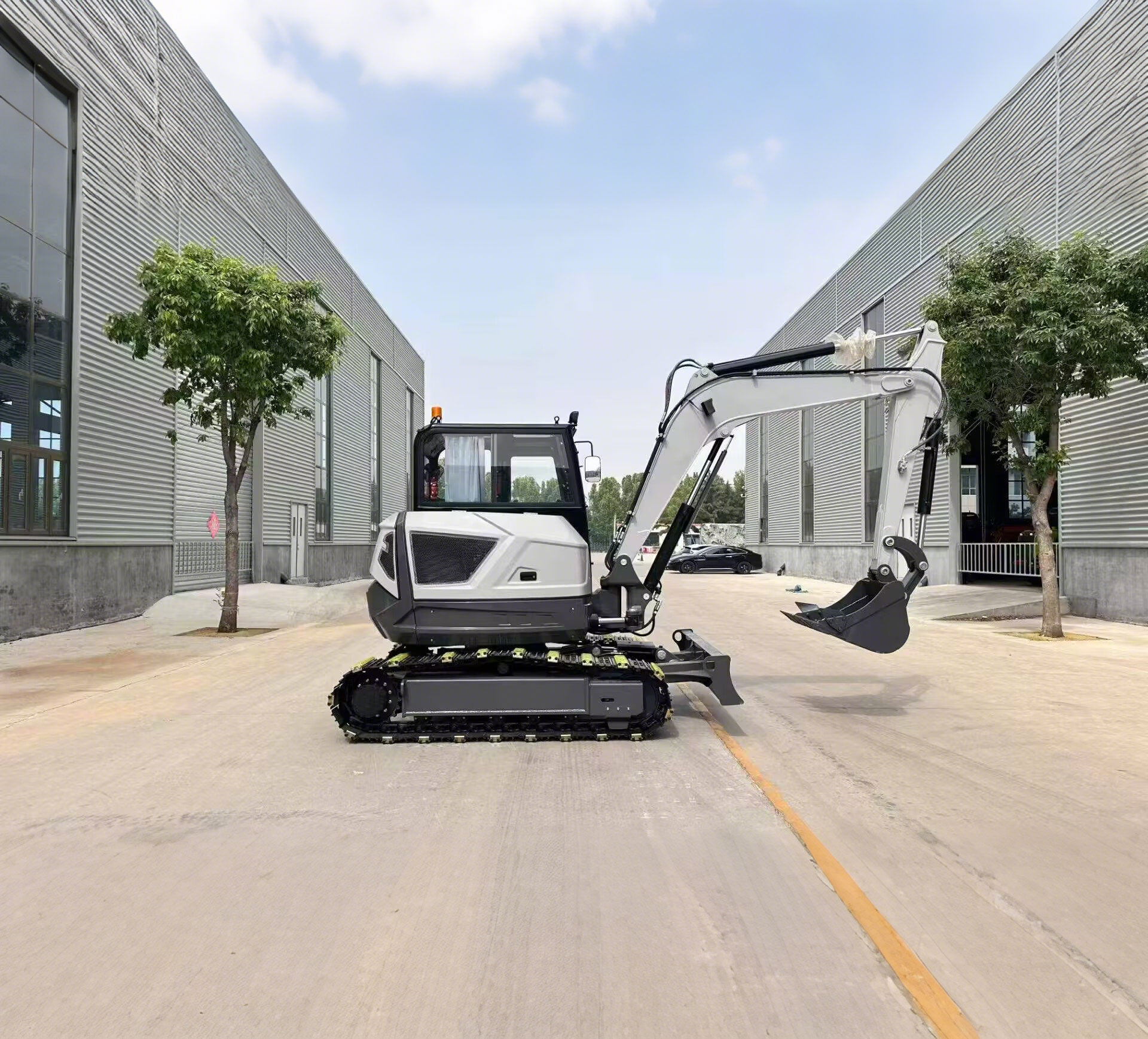

Micro Excavator for Sale in YG Machinery – Factory Price
Generally, it is composed of a power device, transmission device, walking device, and working device. Use the bucket to excavate the material above or below the bearing surface, and load it into the transport vehicle or the earth-moving machine unloaded to the stockyard. A self-propelled mining machine that uses a bucket to shovel exfoliated material or minerals from the working face and transport it to a discharge location for unloading.

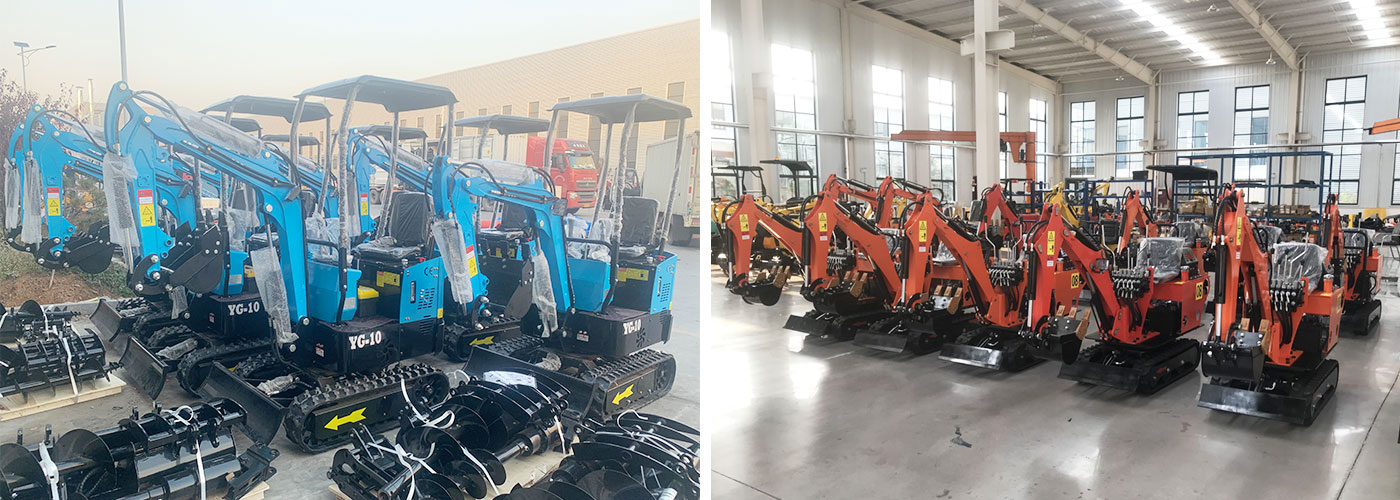

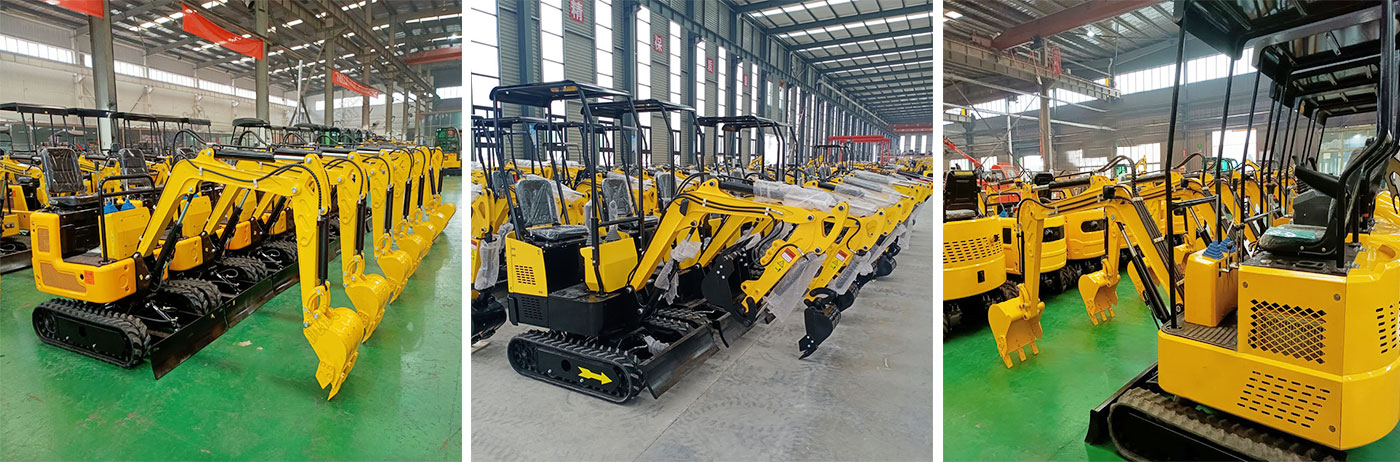

The mini excavator has the advantages of being flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance, and wide application. In addition, we are also a direct manufacturer, our price is not only lower than that of our peers, but we also have various patent certificates. YG is a first-class brand in the industry. Yugong mini excavator, factory wholesale！Various models from 0.8 tons to 8 tons are available.
Parameter of YG Small Mini Excavator:
Item/Model | YG-08 | YG-09 | YG-10 | YG-12 | YG-15 | YG-17 | YG-18 |
Operation weight | 680kg | 680kg | 820kg | 850kg | 1100kg | 1300kg | 1470kg |
Power | 7.6kw/12PH | 7.6kw | 7.6kw | 7.6kw | 14kw/2500r/min | 20kw≈32ph | 11.9kw |
Bucket capacity | 0.03CBM | 0.03CBM | 0.03CBM | 0.03CBM | 0.028CBM | 0.03CBM | 0.05CBM |
Rotation speed | 10r/min | 11r/min | 11r/min | 11r/min | 11r/min | 11r/min | 11r/min |
Crawler width | 150mm | 150mm | 180mm | 180mm | 180mm | 180mm | 230mm |
Max digging height | 2350mm | 2500mm | 2680mm | 2580mm | 2550mm | 2750mm | 3200mm |
Max discharge height | 1600mm | 1600mm | 1700mm | 1745mm | 1700mm | 1800mm | 2300mm |
Max digging dept | 1300mm | 1300mm | 1600mm | 1700mm | 1650mm | 2000mm | 2200mm |
Swing angle | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
Climbing gradient | 30° | 30° | 30° | 30° | 30° | 30° | 30° |
Walking speed | 2.5km/h | 2.3km/h | 2.5km/h | 2.5km/h | 3km/h | 3km/h | 0-3km/h |
Bucket digging force | 6.5KN | 6.5KN | 10.7KN | 11.5KN | 12.5KN | 14.5KN | 16.5KN |

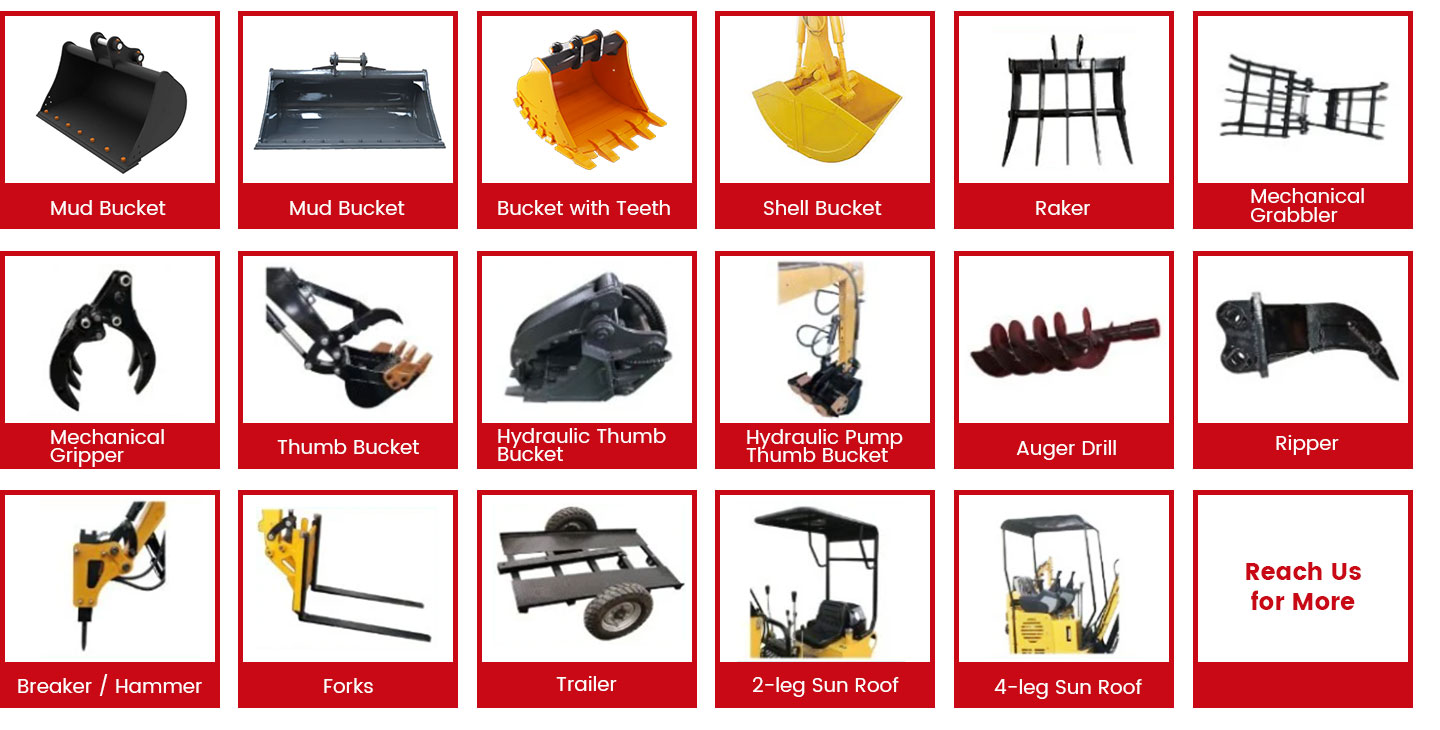

Attachments
Mini excavator can be equipped with a variety of attachments, including buckets, hammers, augers, and more.

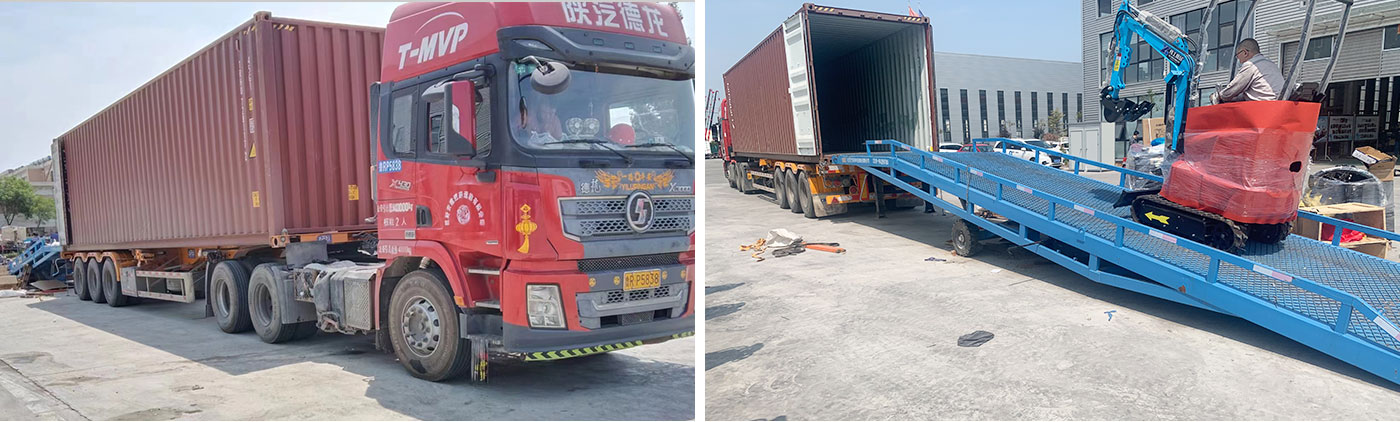

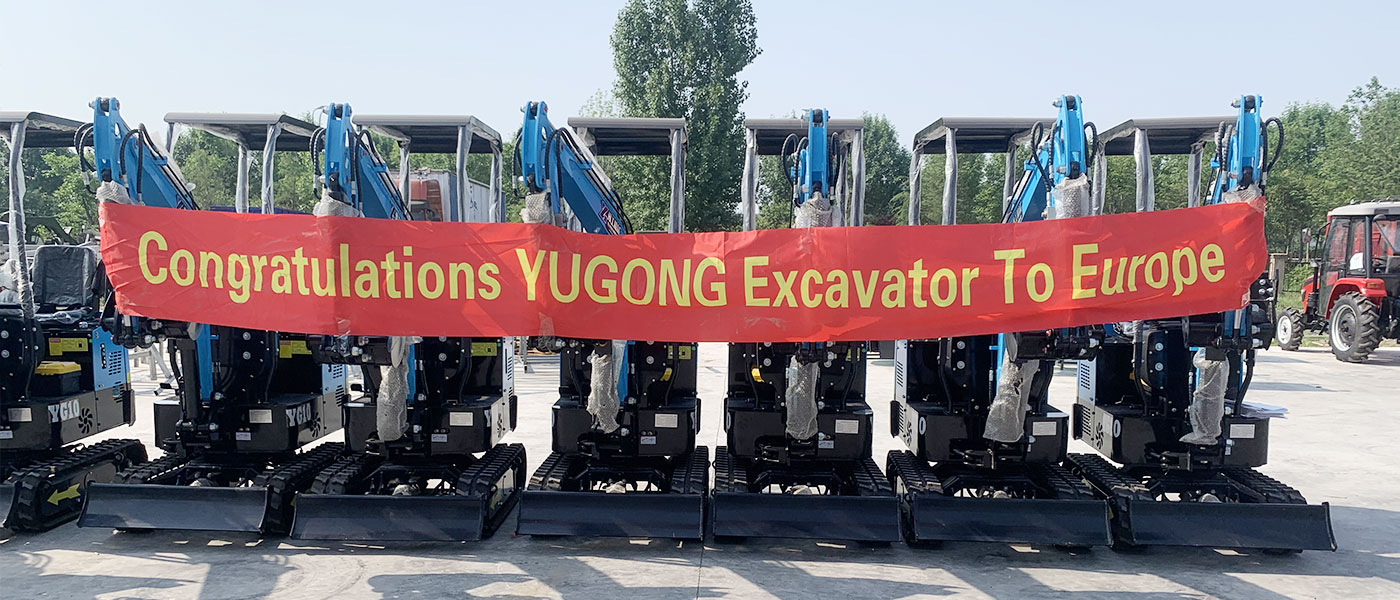

Micro Excavator for Sale in YG Machinery – Delivery Site
18+ years of experience in R&D, production and export. Exported to 100+ countries around the world, won the love and praise of customers.
